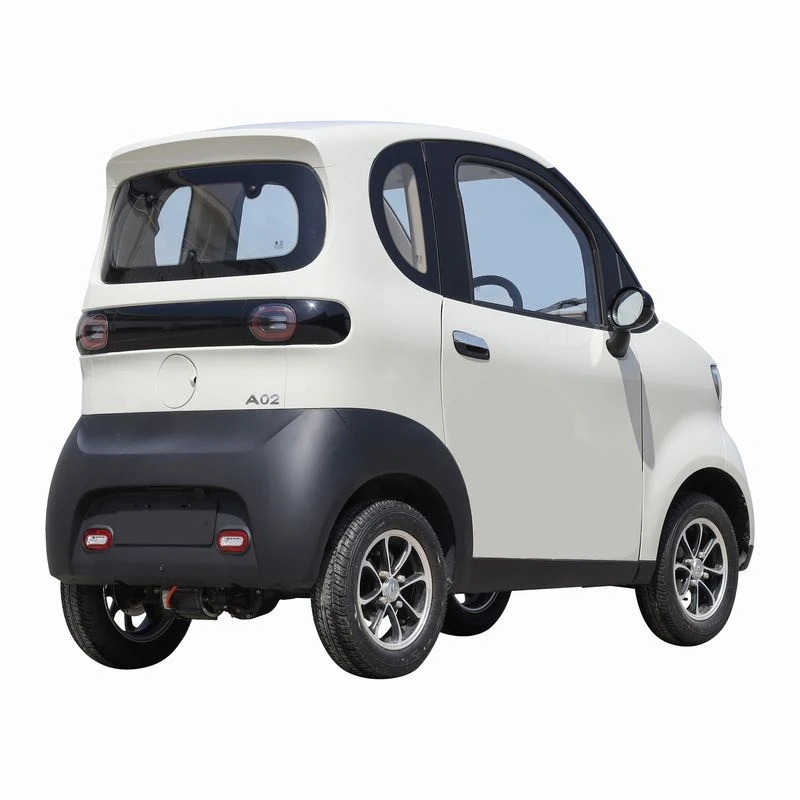

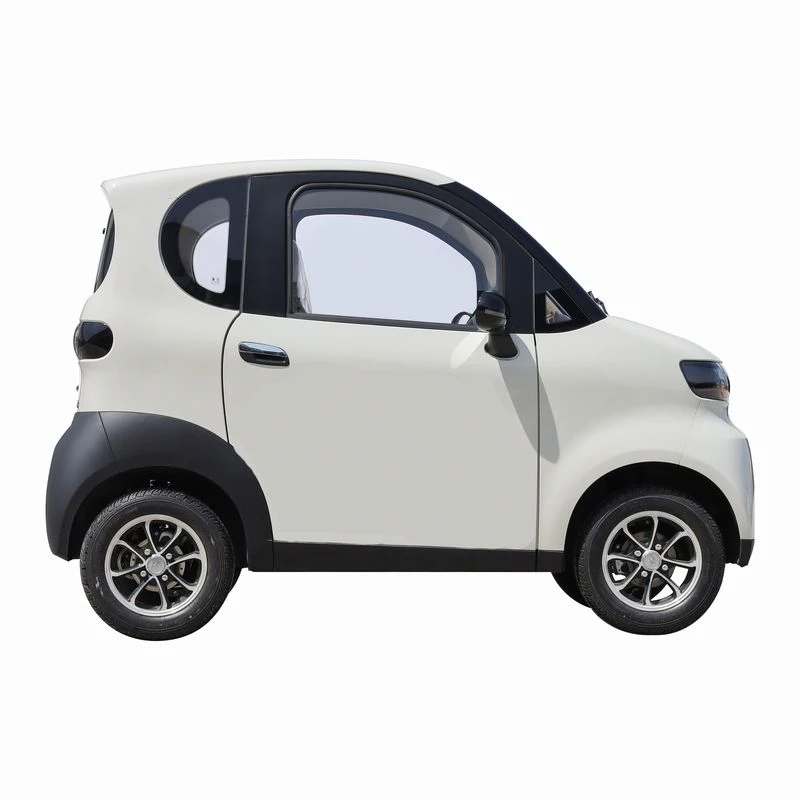

A02 Detail Photo

A02 Details

Specification sheet

Specification Model A02
Version (2.2KW) — Lead Acid (2.2KW) — Lithium
Drive form Drive form Rear motor rear drive Rear motor rear drive
Whole vechiles specification L(mm) 2405 2405
W(mm) 1100 1100
H(mm) 1590 1590
Wheel base (mm) 1617 1617
Axle track(mm) 920/920 920/920
Seats 2 2
Powertrain Parameters Rated motor 2.2KW 2.2KW
Rated volateg(V) 60V 60V
Battery type Lead acid Lithium
Pcs of battery 5 5
On board charger(1000W)
Charing time(h) 5 5
Basic performance Max speed (km/h)(actually) ≧45 ≧45
Max Speed (Meter)(km/h) 43-48 43-48
Maximum grade(%) ≥25 ≥25
Minimum turning diameter(m) ≤8.0 ≤8.0
Minimum ground clearance (half load)(mm) ≥150 ≥150
Suspension Front suspension McPherson independent suspension McPherson independent suspension
Rear suspension trailing arm suspension trailing arm suspension
Rear shock Spring shock integration Spring shock integration
Wheels Tire specification front/rear135/70 R12 front/rear135/70 R13
Wheel material Aluminum alloy Aluminum alloy
Wheel quantity 4 4
Steering system Steering type steering wheel steering wheel
Braking system Front/rear brake type front/rear disc front/rear disc
front/rear driving barke foot brake foot brake
Parking brake form hand brake parking hand brake parking
Body structure Body type load-bearing body load-bearing body
Body structure 2door 3seat 2door 4seat
Safty Safety handle
Front three-point seat belt
Two-point rear seat belt ● one seat ● one seat
Reversing camera
Body anti-theft alarm
Interior central lock
Remote door lock (2pcs)
Remote key (2pcs)
Mechanical key(2pcs)
High brake lights
Anti-slope function
Motor anti-theft
Door open warning light (instrument warning)
Exterior Door open warning light (instrument warning)  Manual  Manual
Outside mirrors with side turn signals
Manual foldable exterior mirrors
Interior rear view mirror
Sun visor
Manual sunroof
Electric glass lift
Back door opening method Back door glass angle open Back door glass angle open
Chairs Carpet PET felt+felt/leather PET felt+felt/leather
Roof PS foam material + non-woven fabric PS foam material + non-woven fabric
Four-way manual adjustment of driver’s seat
Rear seat backrest split
Seat material leather leather
Electric appliance Front windshield wiper Boneless wiper Boneless wiper
Wiper automatic return function
Main power switch
High and low speed function
on button start
Indoor ceiling light
License Plate Light
Warm heater
Glass defrost
Washing pot
Front light
Daytime running lights
Rear fog lamps
Entertainment MP5/MP3player+USB MP5/MP4 player+USB MP5/MP5 player+USB
LED instrument cluster
Electronic instrument display
Pen segment LCD screen
Voice prompts
Phone charging
Speaker ●1个 one pcs ●1个 one pcs
●:      equiped                                               —:    unequiped                             ○:opotioanl
