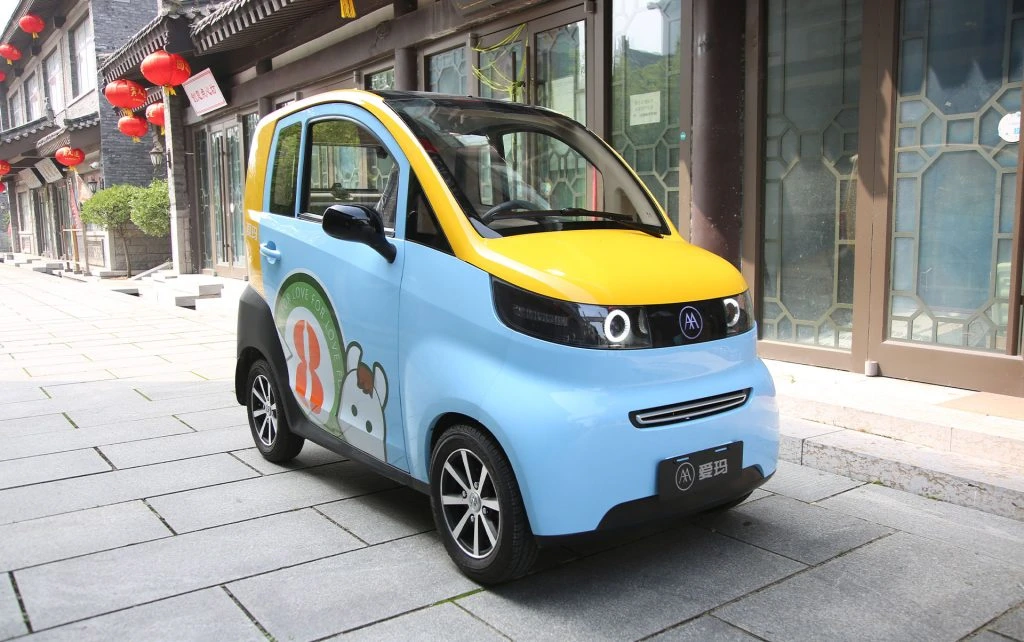

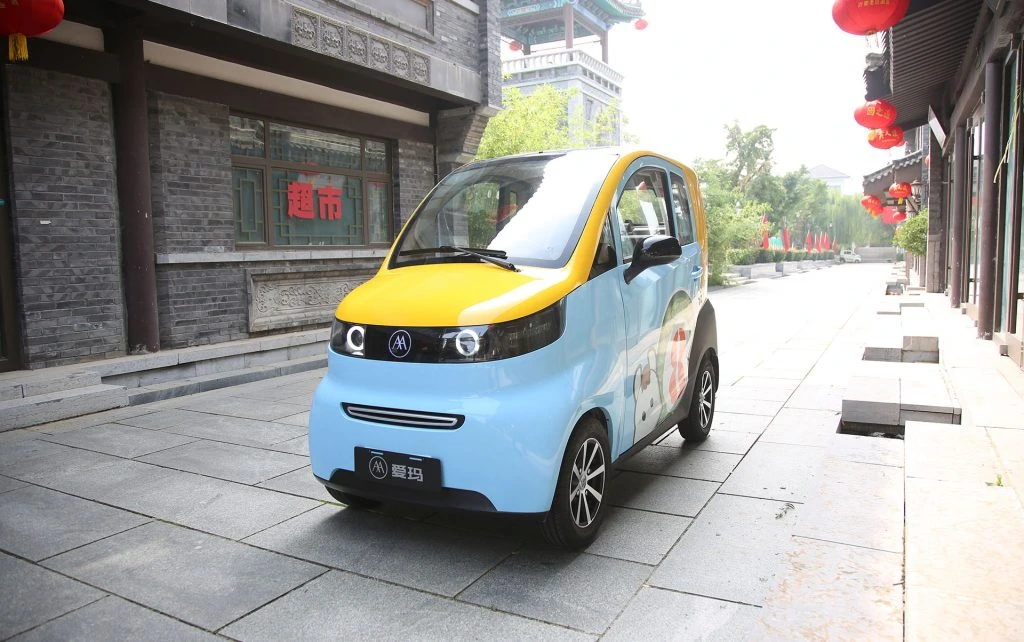

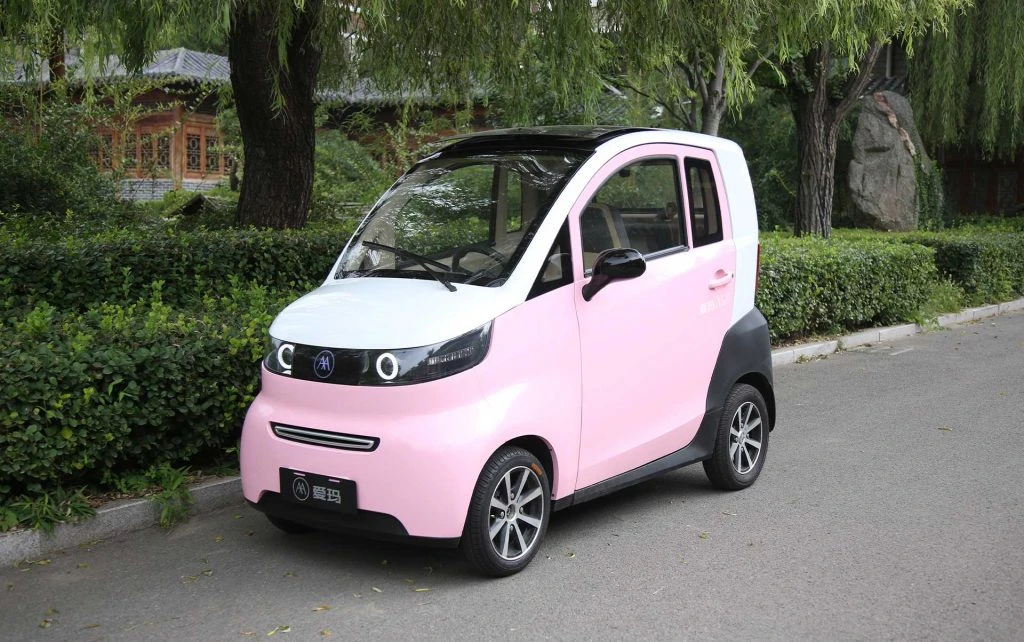

A01 Detail Photo

A01 Details


YouTube video

Specification sheet

V-SHINE Specification
V-SHINE Remark
Driving system Driving system Rear-engine Rear-drive
 Vehicle parameters length(mm) 2375
wedith(mm) 1210
Height(mm) 1600
wheelbase(mm) 1600
wheel track(mm) 1010
cargo volume
kerb weight(mm) 485
kerb weight(without battery)(mm) 210
ground clearance(full load)(mm) 130
Axle load  (%) front / rear (including battery) 81/176
seat(person) 1+2
 Basic performance maximum speed (real)(km/h) 33
maximum speed (meter)(km/h) 35~40
range under maximum speed (Theoretical value)(km) 65
ecobimic speed (real)(km/h) 30
range under economic speed(25℃)(km) 70
0-30km/h acceleration time(s) ≤10s
Maximum gradability % ≥20
Minimum turning radius (m) ≤6000
Driving noise(db)
Power system parameters motor type  Permanent Magnet Synchronous
motor model 60V1500W60H
rated power/motor speed (kW r/min) 1500W/3300
rated voltage(V) 60
controller model Sinusoidal 60v21 tube
rated output current (A) 55A
Battery type  Lead acid
number of battery 5
Rated capacity(Ah) 52AH
Nominal voltage(V) 12
DC converter power 220
Charger 400W(52AH)
charing time 8-10
Range extender
 body type and structure Body type Load bearing body
Body structure
Suspension structure Front suspension  Hydraulic damping
Rear suspension  Trailing arm dependent suspension
whelels Front tire specification 130/60-13M/C
Rear tire specification 135/70R12
Tire pressure (kPa) front / rear 280
Rim model  aluminium alloy
spare tire
 steering system Steering gear type  Handle style
Steering wheel size
Steering wheel material
Steering wheel adjustment function
Multifunction steering wheel
 braking sysytem Front / rear brake type  front disc rear disc
brake assist
Braking type  Handbrake
humanity design Shift structure
Driver not wearing seat belt reminder
Headlamp delay off function
Reminder that the handbrake is not loose
Door open reminder
remote key
Anti pinch of glass lifting
Water spray wiper
Automatic headlamp
Rear wiper
Four way electric adjustment of driver’s seat
Four way manual adjustment of driver’s seat Front and rear adjustable, angle adjustable
Passenger seat four-way manual adjustment
Front seat headrest height adjustable
Rear seat headrest
Rear seat integral recline
Knitted seat
Leather seat
Driver’s 3-point safety belt Two point belt
Rear seat 2-point belt
Door material
Steering wheel airbag
Passenger airbag
Safety handle
Parking sensor
Reversing image
  Interior and exterior decoration side mirror electric adjustment
side mirror manual adjustment
side mirror with side turn signal
side mirror manual folding
side mirror electric folding
Electronic anti dazzle interior rearview mirror
Mechanical anti dazzle interior rearview mirror
Injection molded bumper
Wheel hub trim cover
Glass lifter
Front windshield  Tempered glass
Non fixed ashtray
Driver’s sunshade
Driver’s sunshade vanity mirror
Passenge side sunshade
Passenger sunshade vanity mirror
Internal Antenna
Shark fin antenna
Boneless wiper
Luggage rack
Tail wind
Door sill batten
Pocket covers
Front external bumper
Main power switch
 electric appliance Front interior ceiling lamp
High and low speed function
Warm heater
Steering lock anti-theft device
Daytime running lights
Front fog lamp
Rear fog lamp
License plate lamp
high-mount braking lamp
Reversing horn
Liquid crystal instrument
Energy recycle sustem
Bluetooth Handsfree device
Multi-Media Satellite positioning and navigation system
LCD screen
USB charing port
Tire pressure display
Battery management display
speaker 2
Trailer hitch
On board tools instructions
Special wrench for anti-theft screw
Maintenance Handbook
           —— none                                  ● Standard                               ⌾ Optional
