1.8M-BT-B03 Detail Photo
1.8M-BT-B03 Details
Characteristics

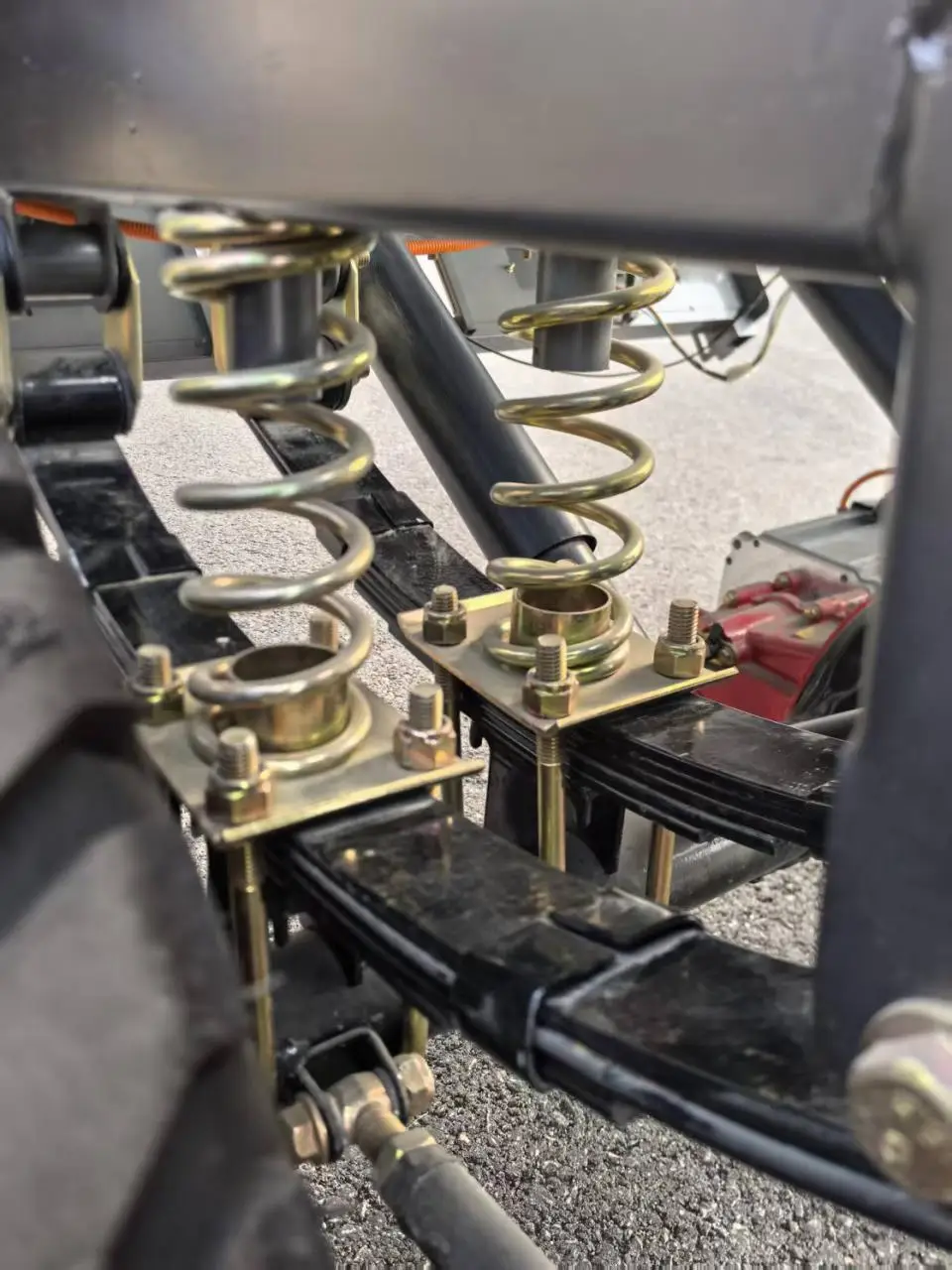

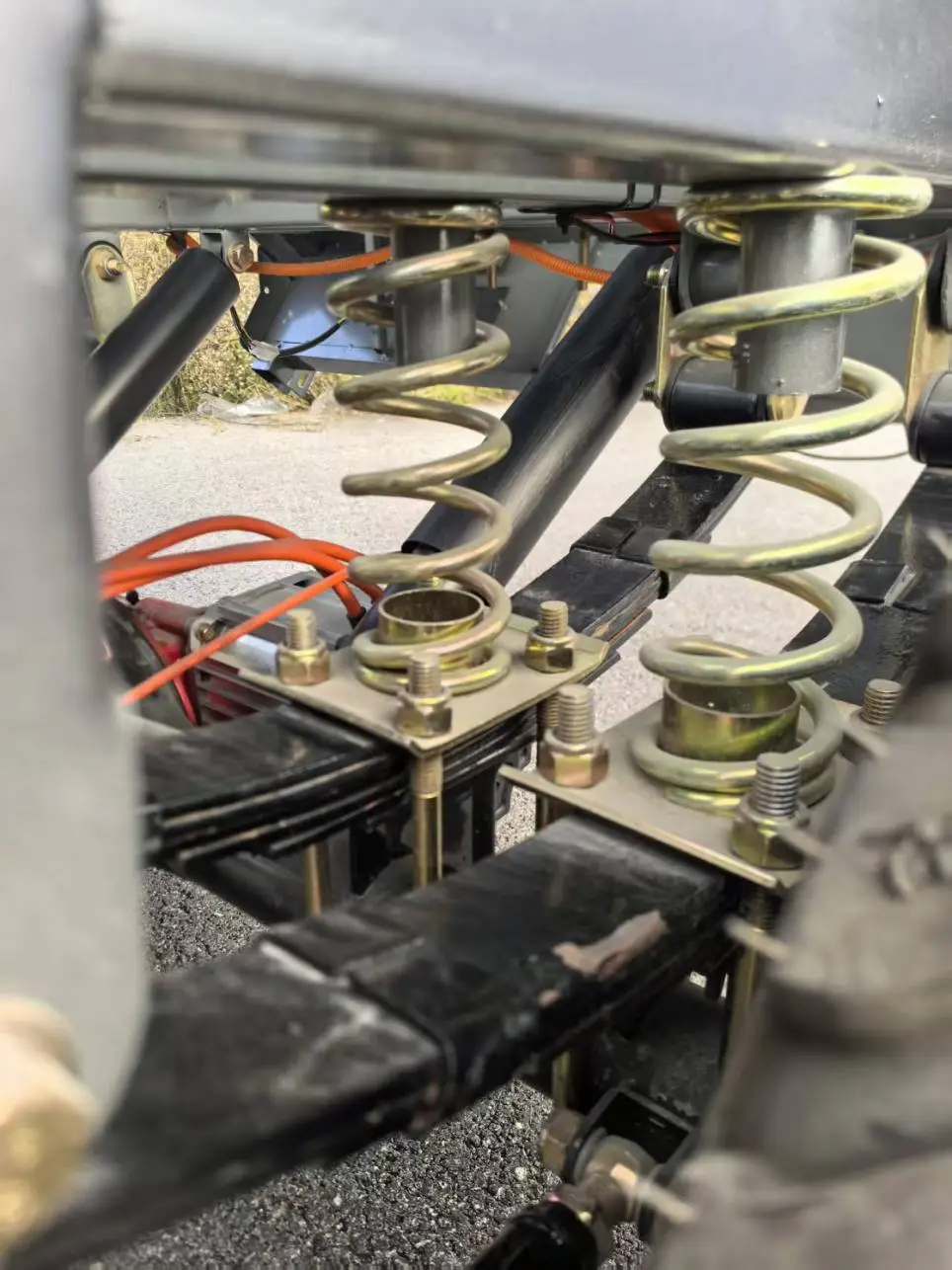

- Shock absorption：It adopts a double helical spring and double leaf spring design, providing a stronger shock absorption effect and load-bearing capacity.

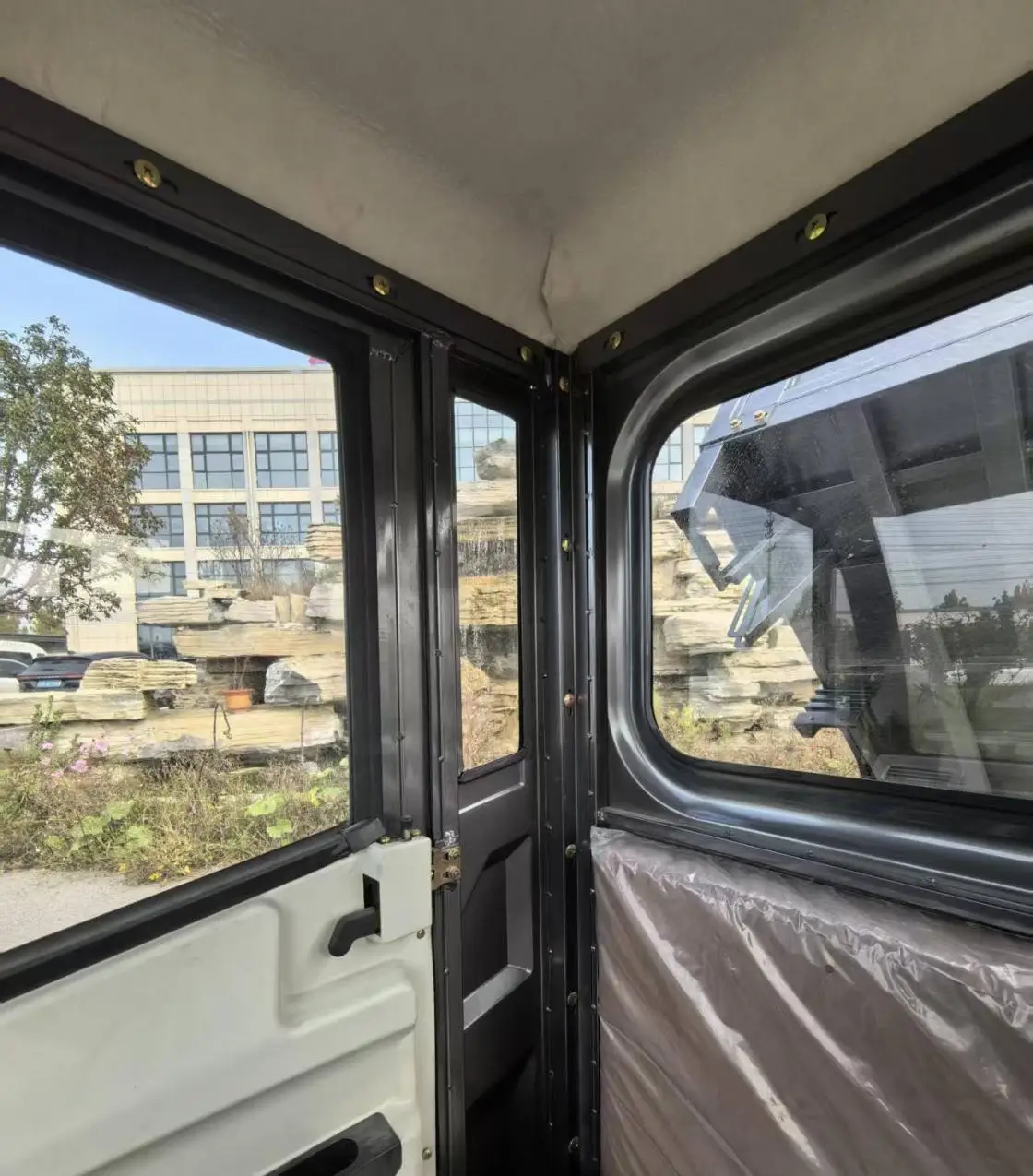

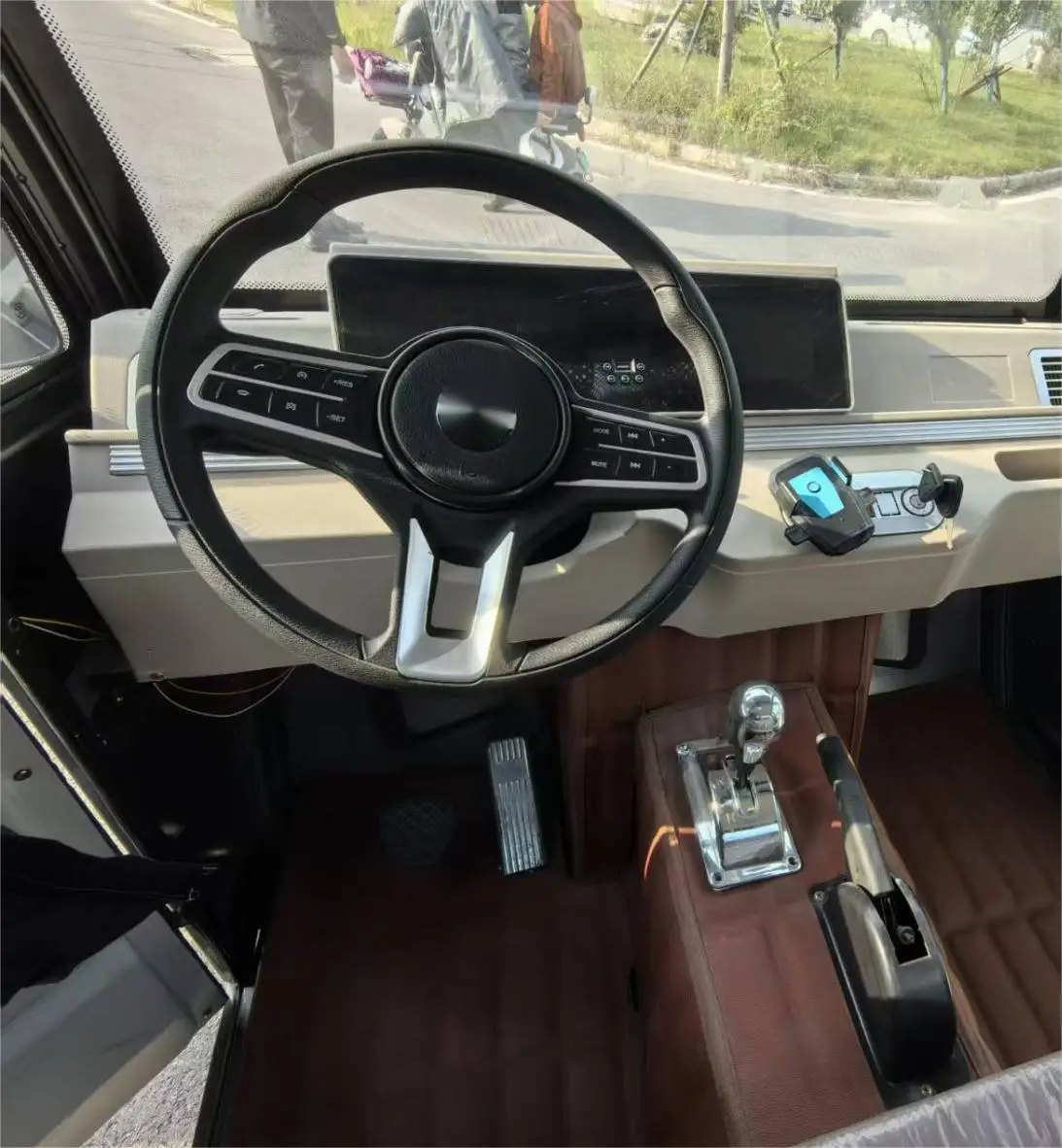

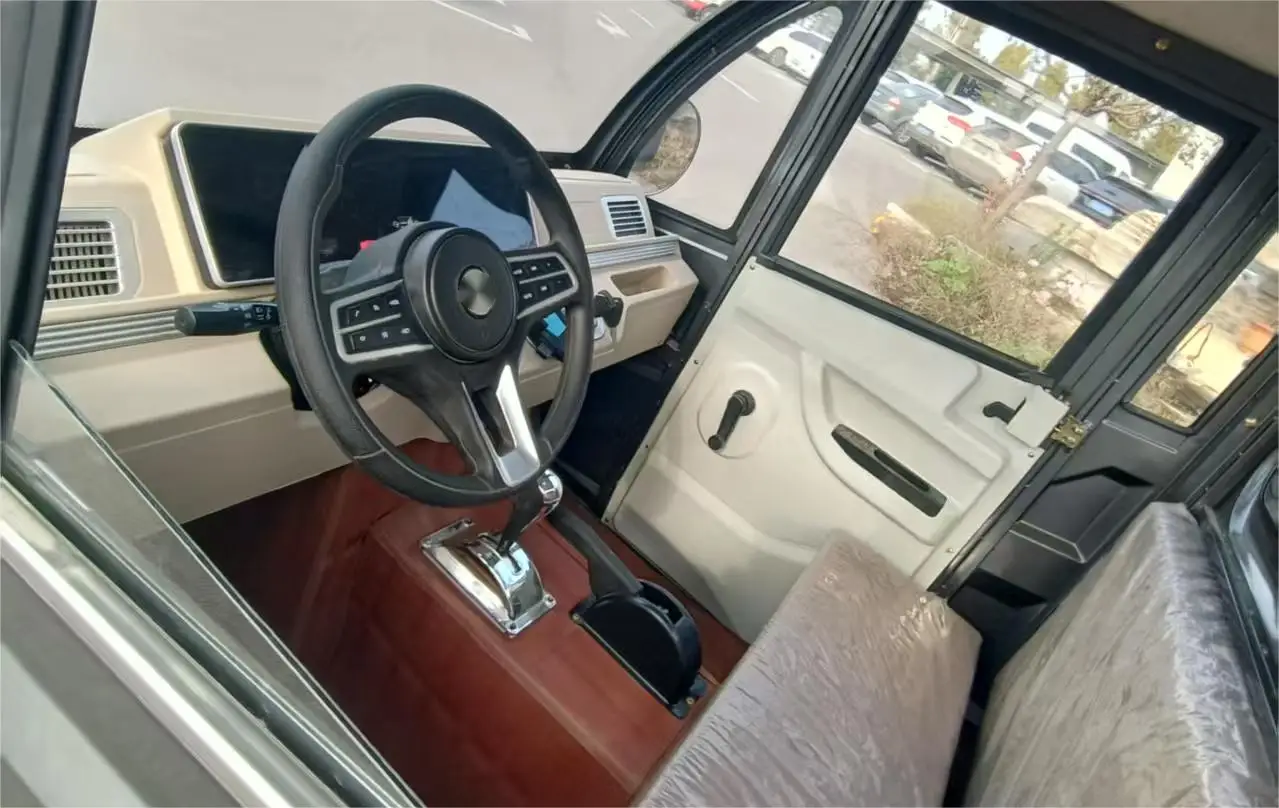

- Cockpit：The interior of the cockpit is reinforced with screws to reduce transportation costs and facilitate assembly and production for customers. It adopts a disc steering wheel, providing precise steering and enhancing driving accuracy.

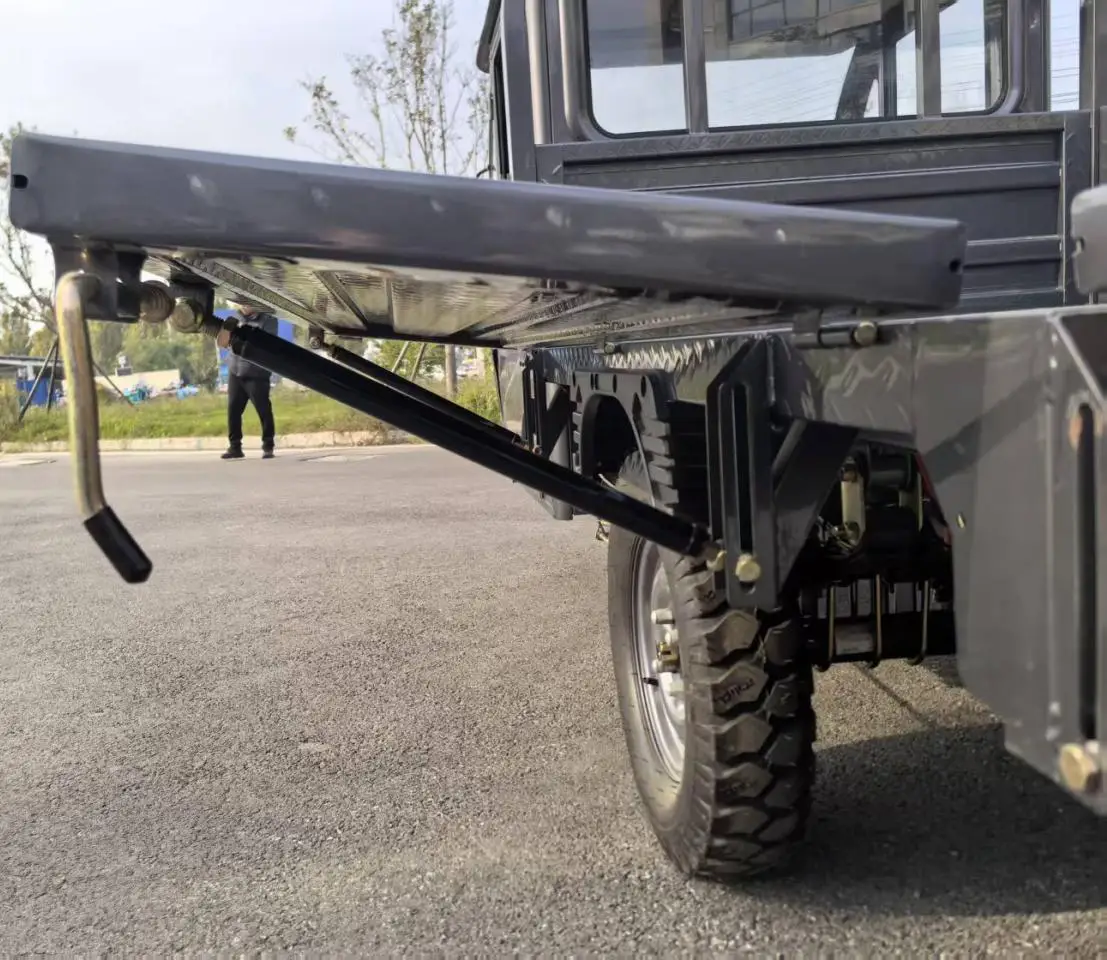

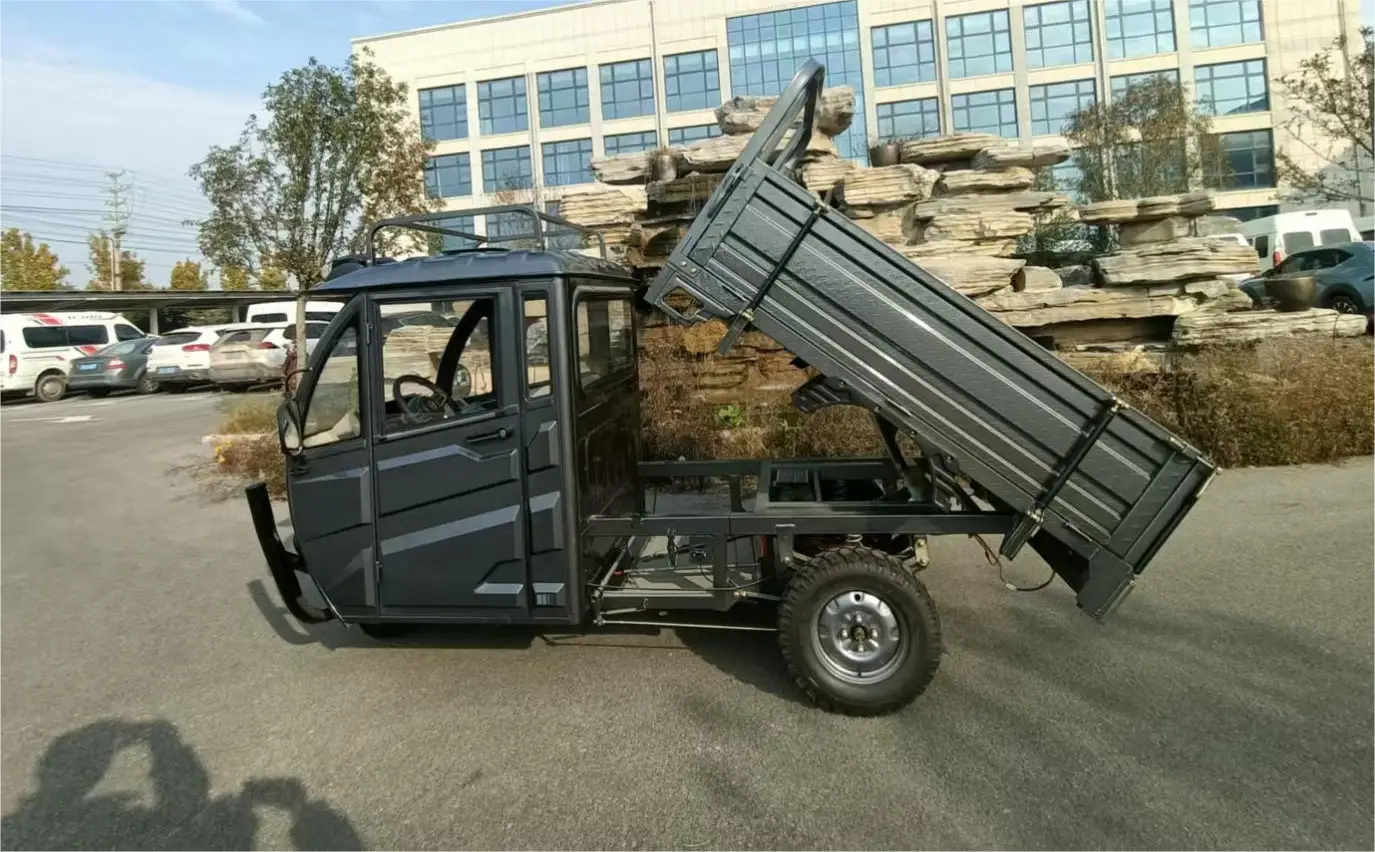

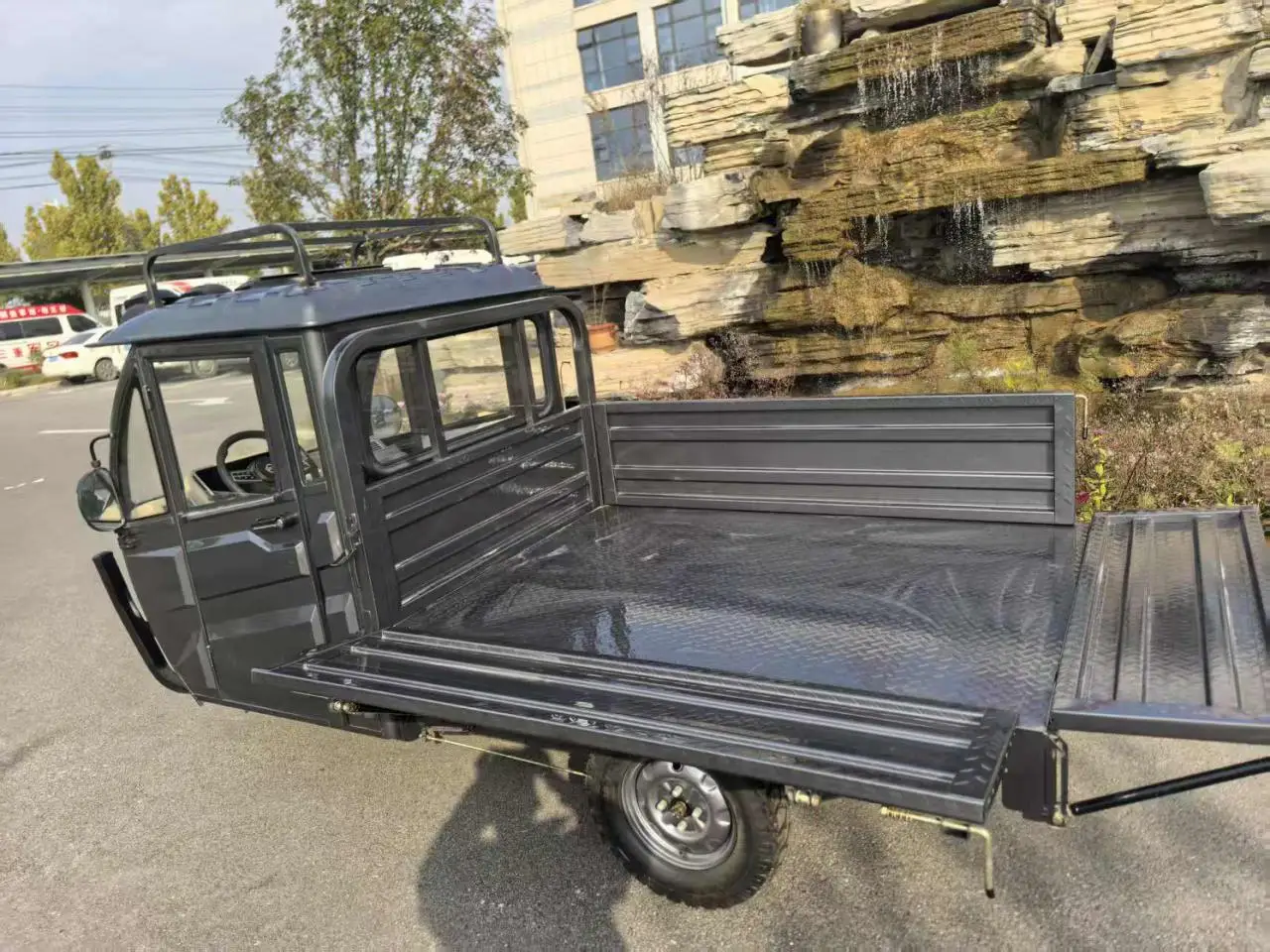

- Cargo capacity：All the carriage doors can be used as temporary platforms to increase the cargo capacity. The steel plate door core has strong impact resistance.

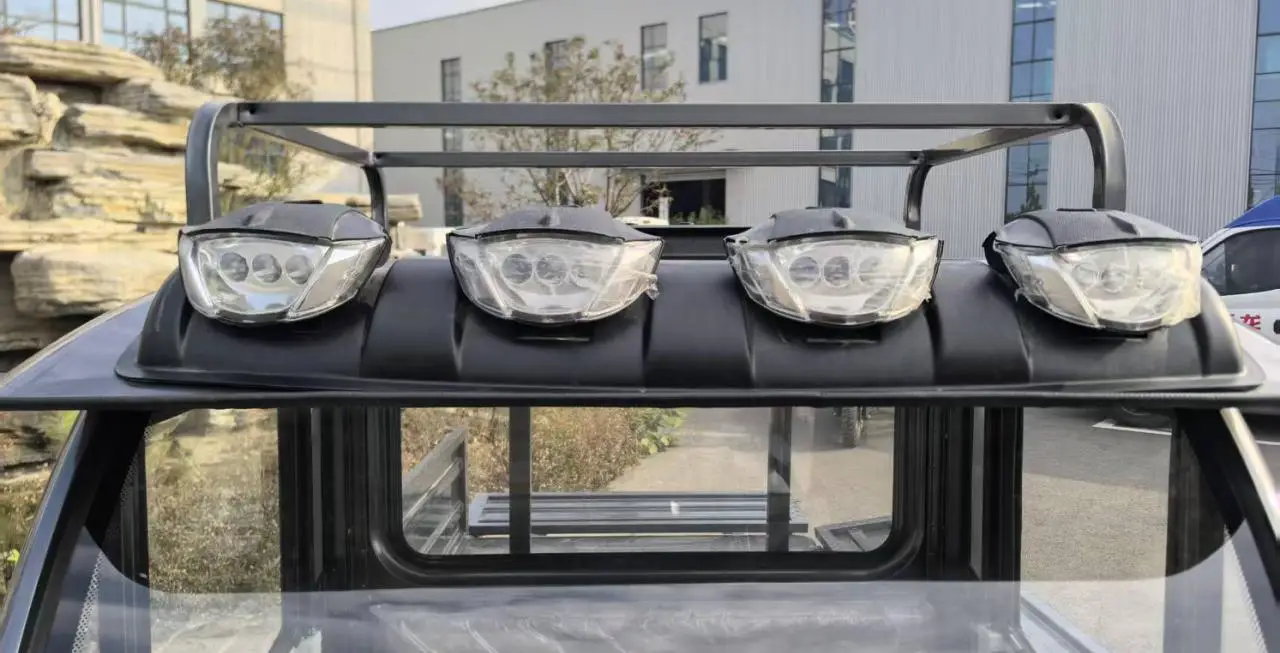

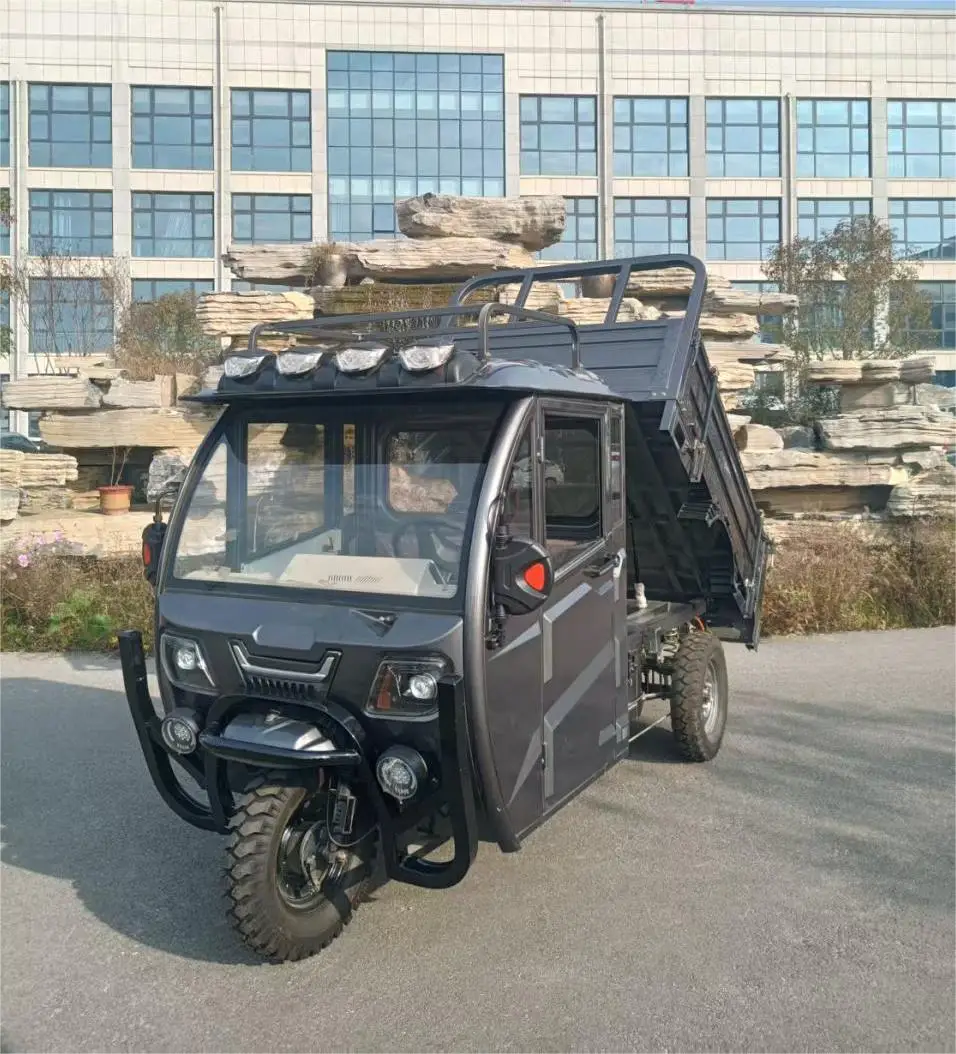

- Multi-light assembly：There are auxiliary lights at the bottom and top of the front of the car to enhance the lighting effect.

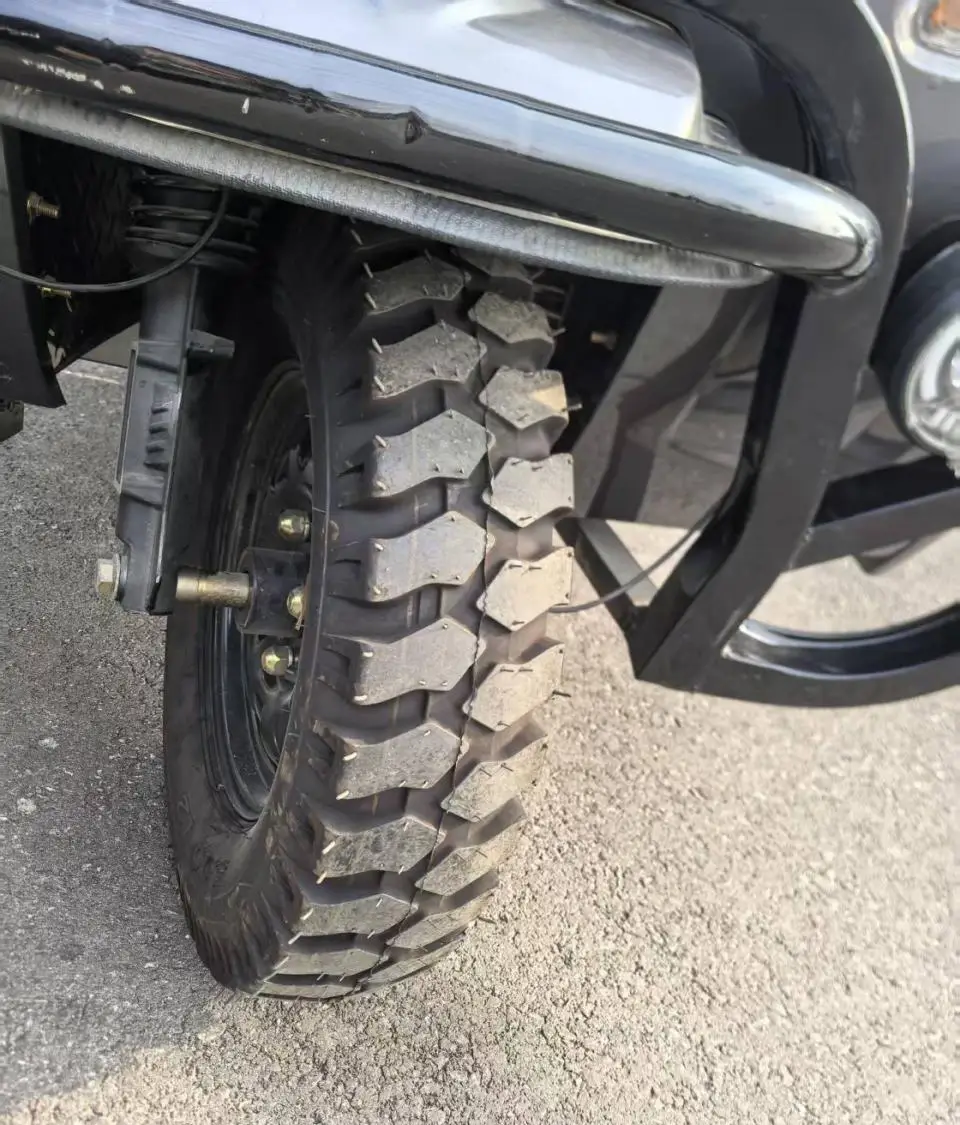

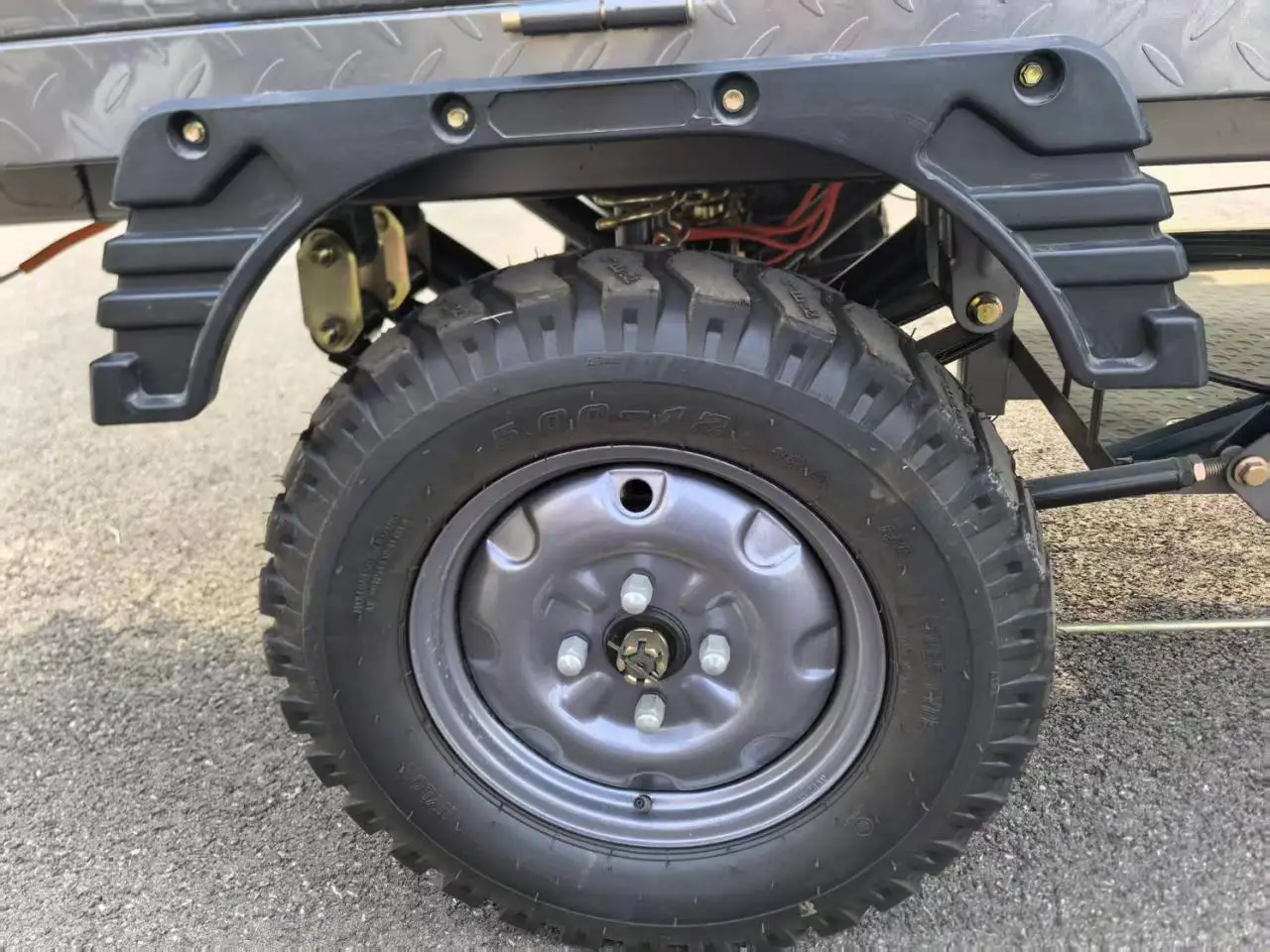

- Tyre：The tread of the tire features deep grooves and block patterns, providing strong grip and making it suitable for various complex road sections.
Parameters
| Parameter Information | Information |
| Overall Vehicle Dimensions (L×W×H) | 3350mm*1380mm*1850mm |
| Internal Cargo Compartment Dimensions(L×W×H) | 1720mm*1220mm*420mm (Outside)
1795mm*1300mm*420mm（Inside） |
| Battery compartment size （L*W*H） | 780mm*550mm*340mm |
| Unladen Ground Clearance(mm) | 200mm |
| Rear Wheel Track/Wheelbase | 1130mm/2135mm |
| Curb weight(KG) | 430 |
| Motor Power | 2000w |
| Transmission Gears | Low Gear/High Gear |
| Front/Rear TyreDesignation | Front:5.00-12 Rear:5.00-12 |
| Front/Rear shock absorption | – |
| Service Brake System | Foot-Operated Service |
| Brake Type (Disc/Drum) | Drum |
| Parking Brake | Hand-Operated Parking Brake |
| Steering Form | Steering Wheel |
| Seat | two-seater |
| Lithium Iron Battery/lead acid battery | Choosable |
| Charging time(h) | – |
| Range (City)(km) | – |
| Max speed(km/h) | 25-45 |
| Speed Mode | Low/Medium/High Speed Mode |
| Rated Payload Capacity(KG) | |
| glass | Hand-cranked glass |
| SKD Semi-Bulk Frame | – |
| CKD completely dismantled | 30PCS/40HQ |
| Excluding tax, excluding batteries, excluding delivery charges |
