1.6M-BT-B05 Detail Photo

1.6M-BT-B05 Details

Characteristics

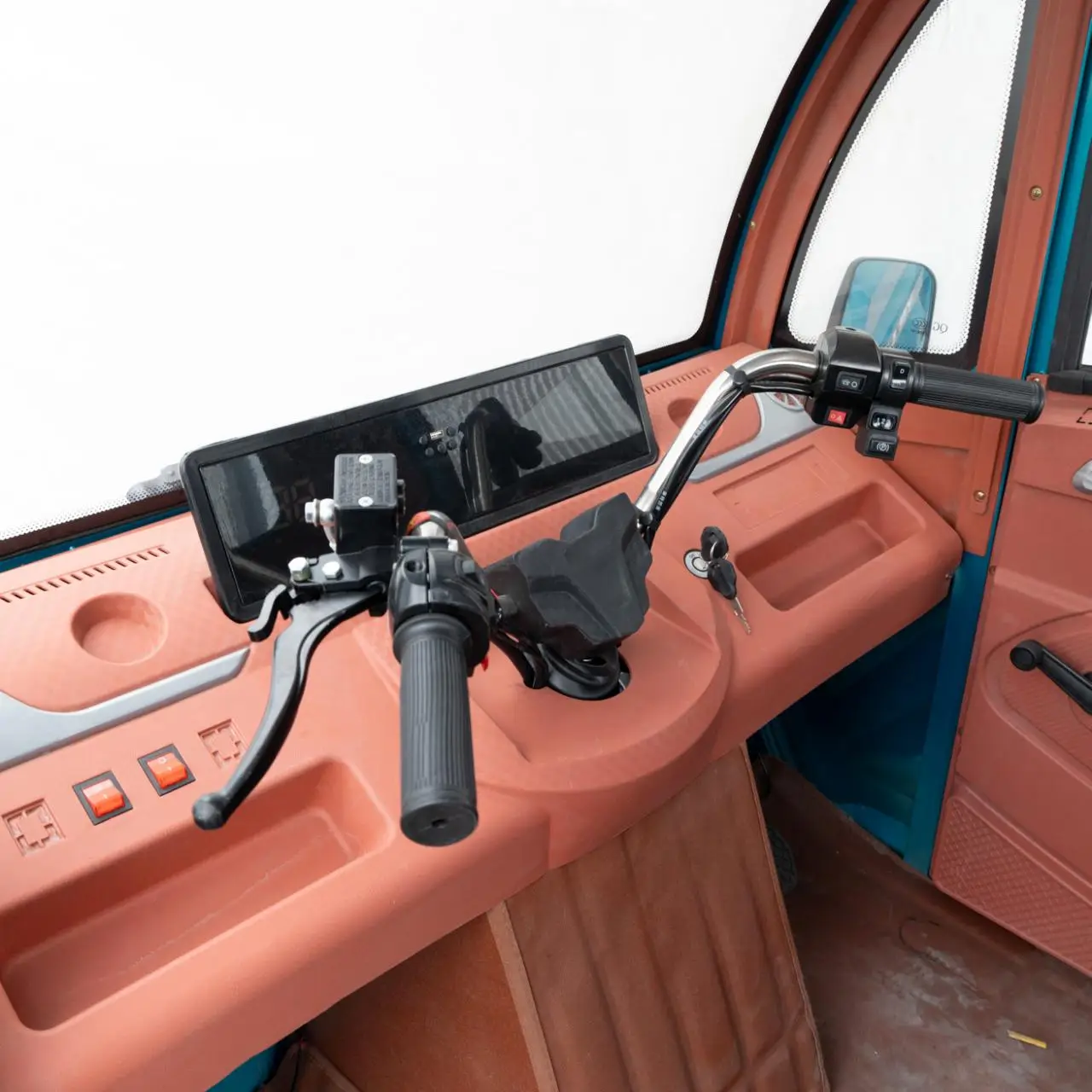

  • Interior：The interior adopts a fully enclosed design and is fixed with screws, making it convenient to disassemble and assemble.

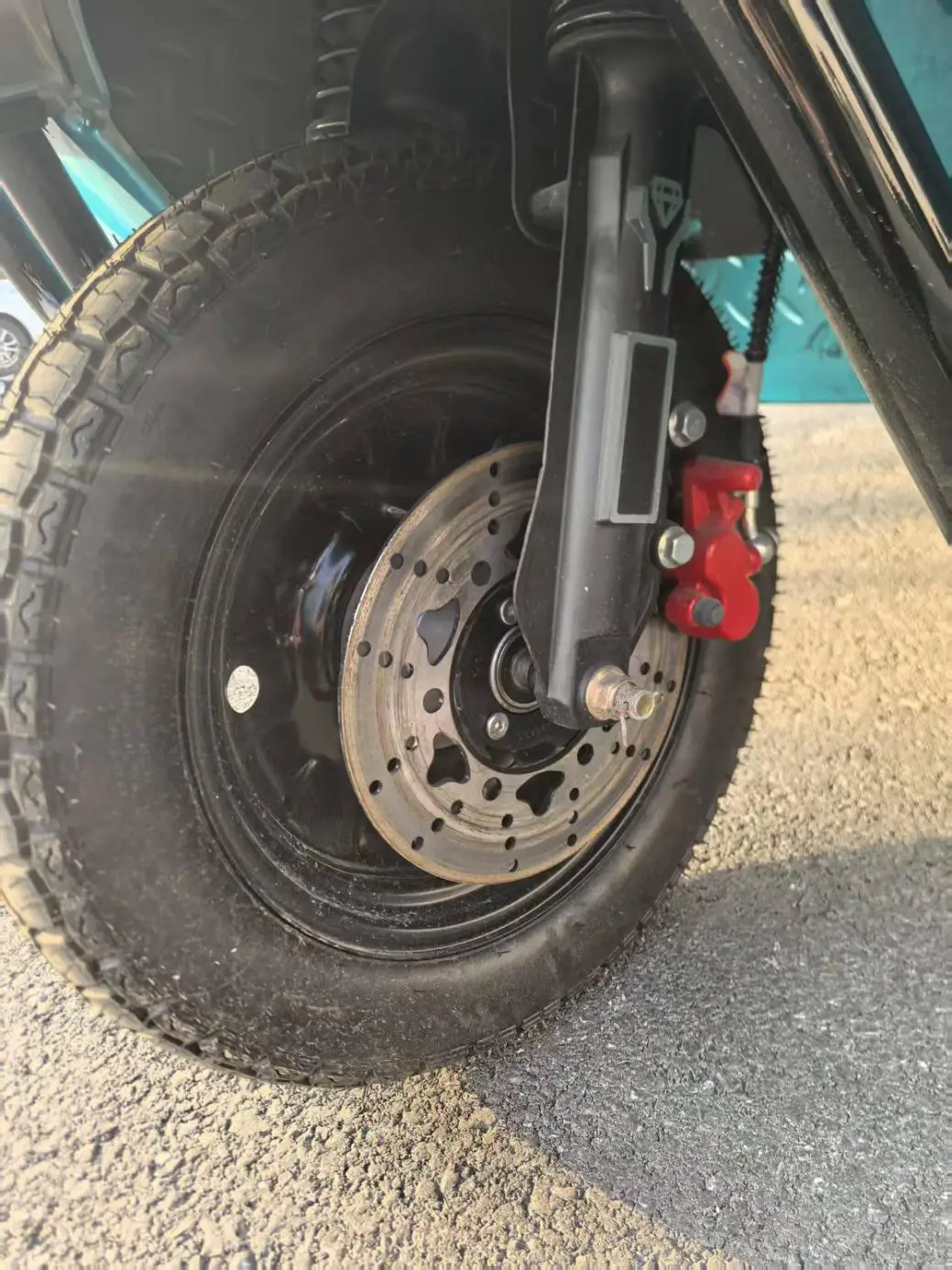

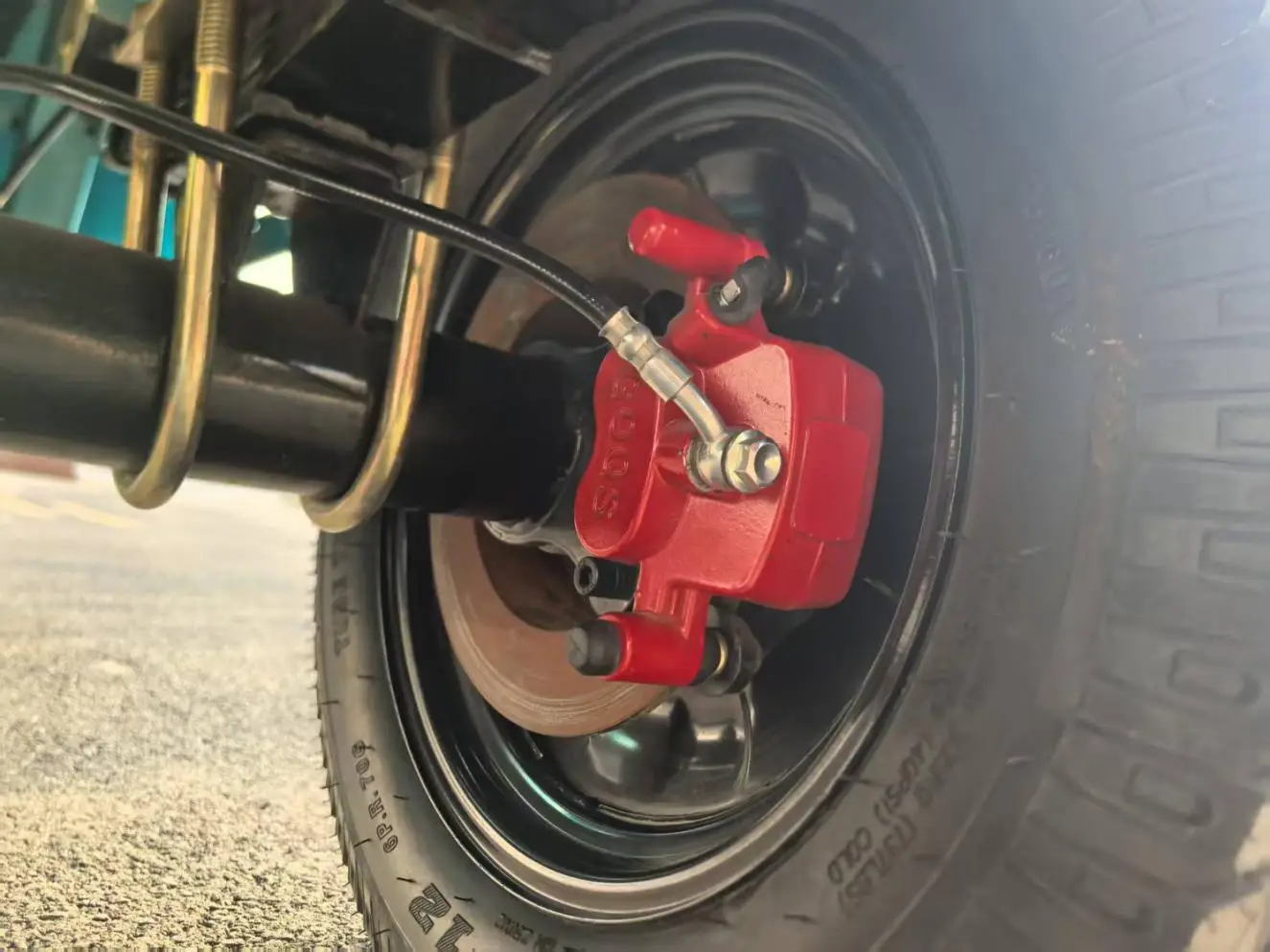

  • Braking system：Both the front and rear are equipped with disc brakes, providing strong and stable braking force and higher safety.

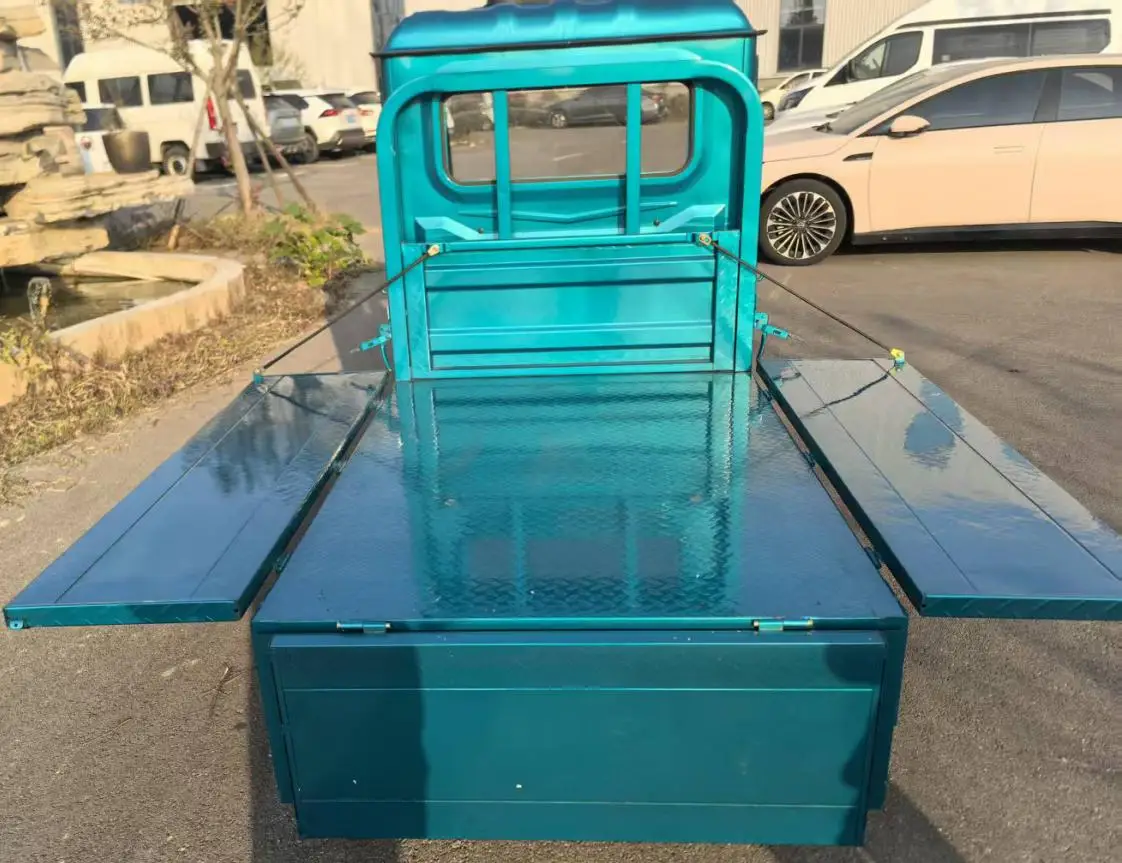

  • Carriage：The two side doors of the carriage can be placed flat to increase the usable area.

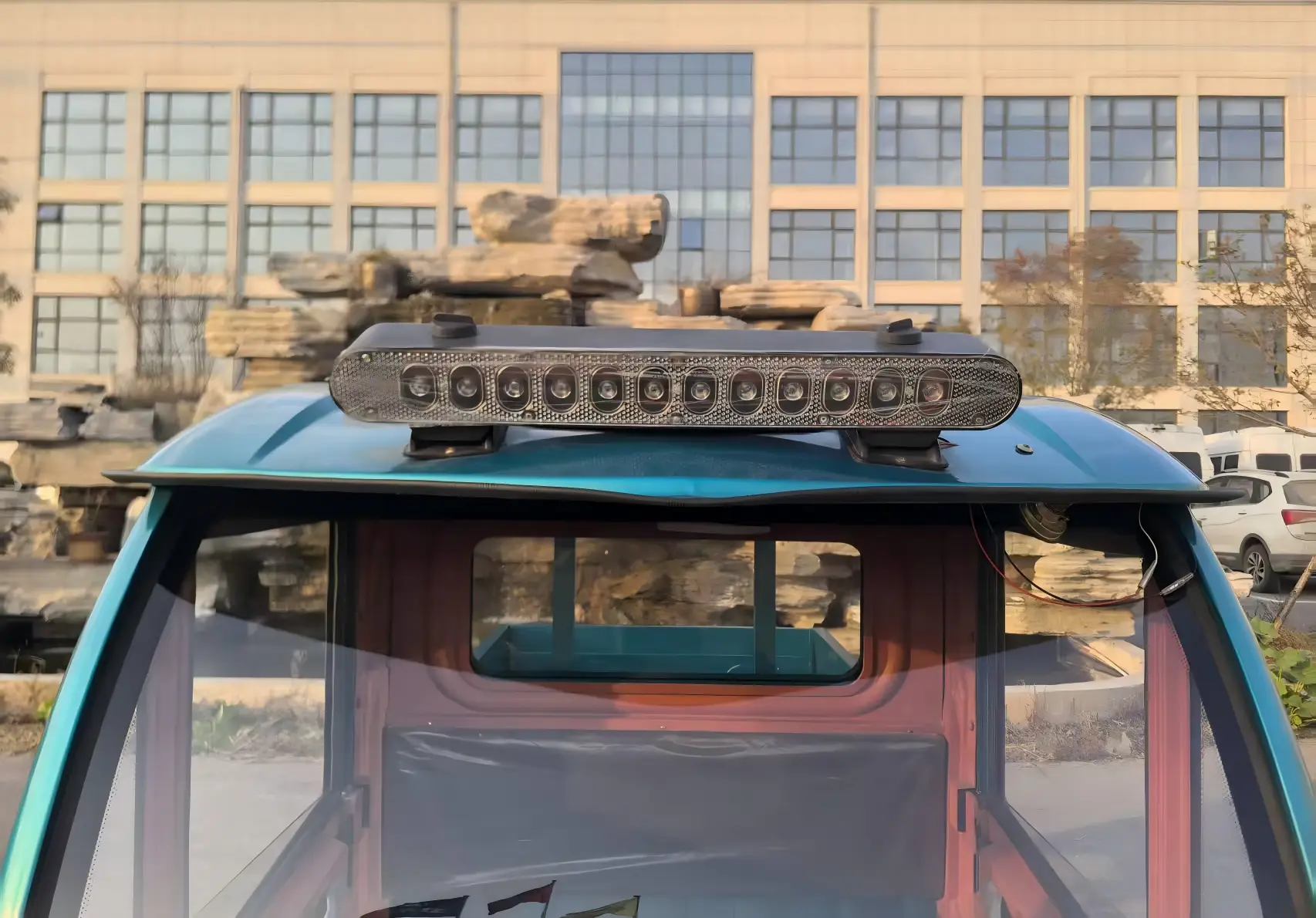

  • It adopts a horizontal row ceiling light design, providing a wider lighting range and easier installation.

Parameters

Parameter InformationInformationPostscript

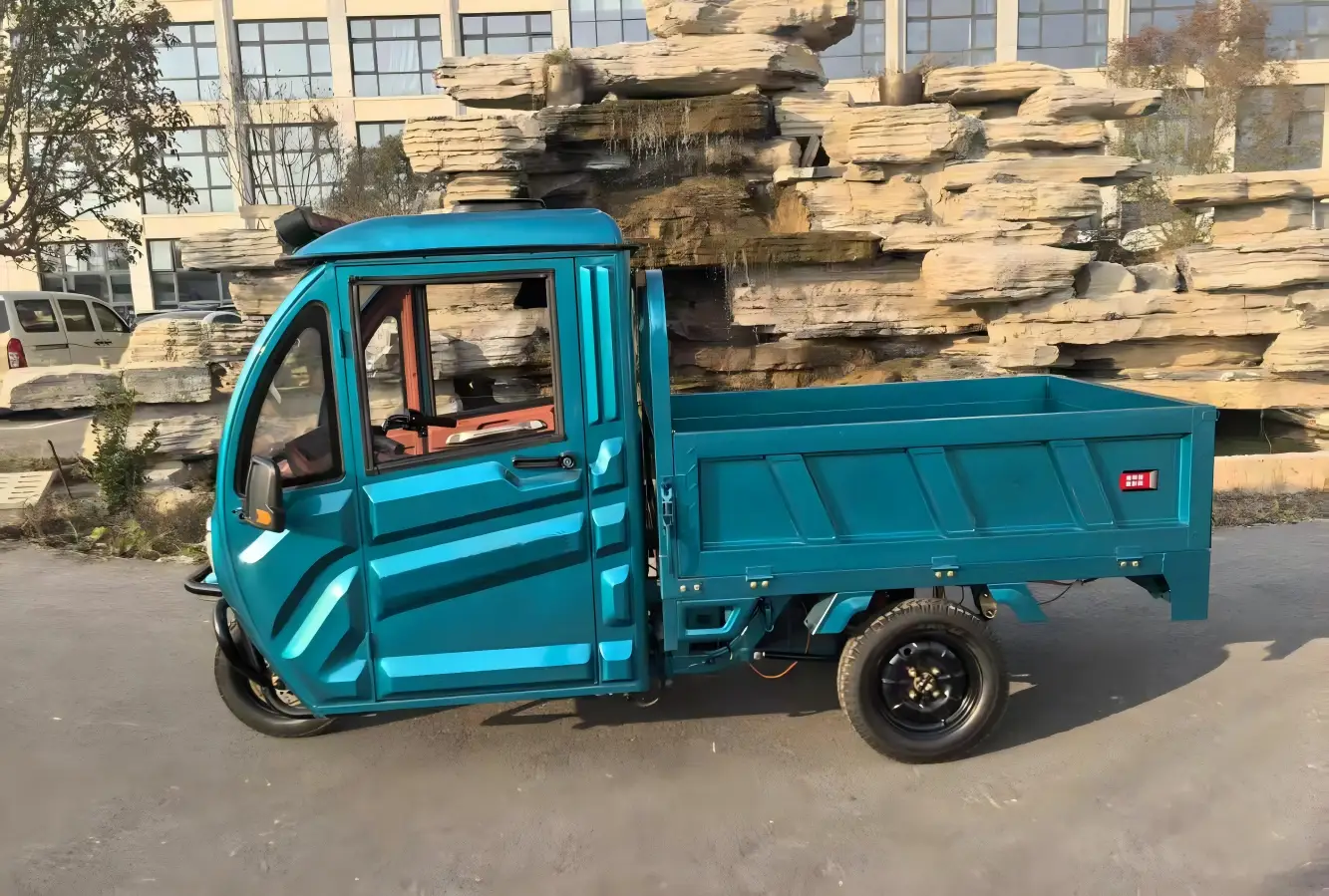

Overall Vehicle Dimensions (L×W×H)3100mm*1200mm*1710mmBT
Internal Cargo Compartment Dimensions(L×W×H)1600mm*1100mm*420mm（Outside）

1520mm*1020mm*420mm(inside)

Unladen Ground Clearance(mm)≥160
Rear Wheel Track/Wheelbase970mm/2000mm
Curb weight(KG)300
Motor Power1800wPMSM
Transmission GearsLow Gear/High Gear
Front/Rear TyreDesignationFront:3.75-12 Rear:4.00-12
Front/Rear shock absorption–
Service Brake SystemHand-Operated Service

Brake&Foot-Operated Service

Brake Type (Disc/Drum)Disc
Parking BrakeHand-Operated Parking Brake
Power BatteryChoosable
Battery Specifications–
Charging time(h)–
Range (City)(km)–
Max speed(km/h)40
Speed ModeLow/Medium/High Speed Mode
Rated Payload Capacity(KG)
Maximum Payload Capacity(KG)600
Maximum Grade ability(°)–
CKD completely dismantled40pcs/40HQ
