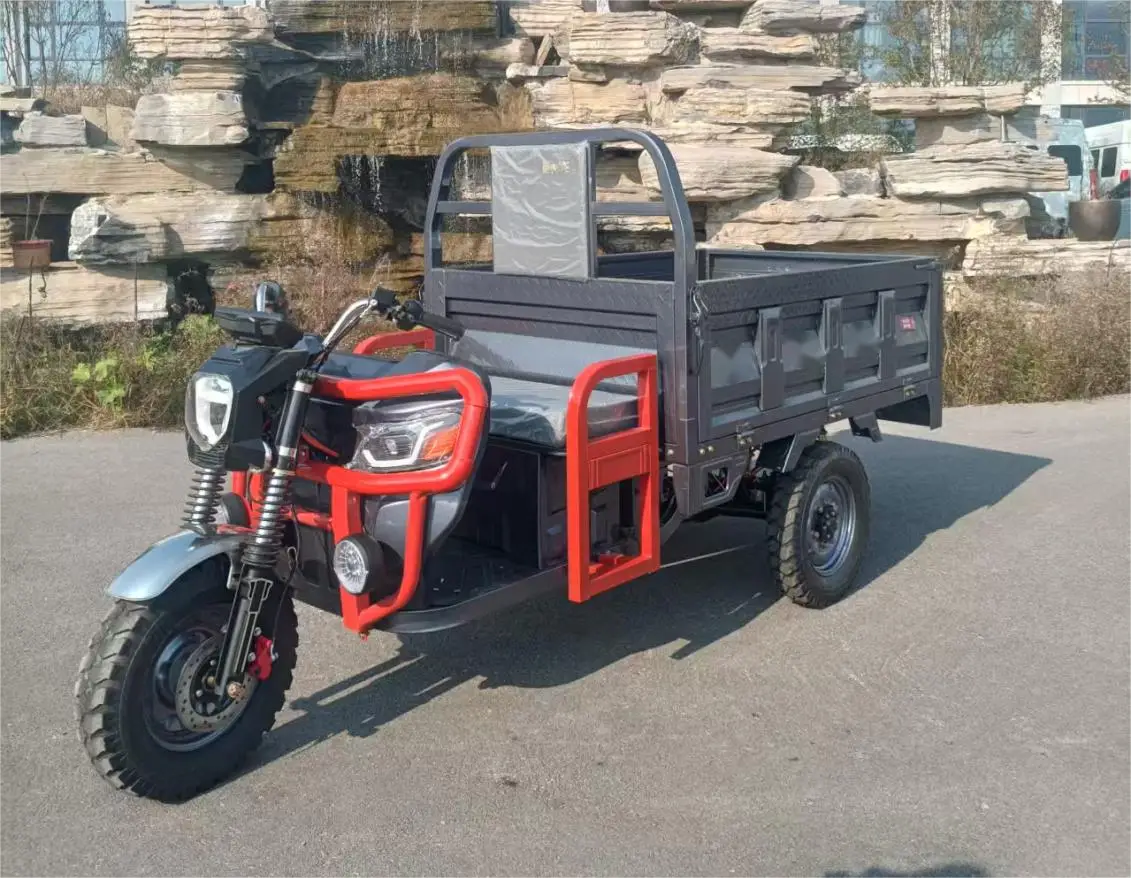

1.6M-BT-B02 Detail Photo
1.6M-BT-B02 Details
Characteristics

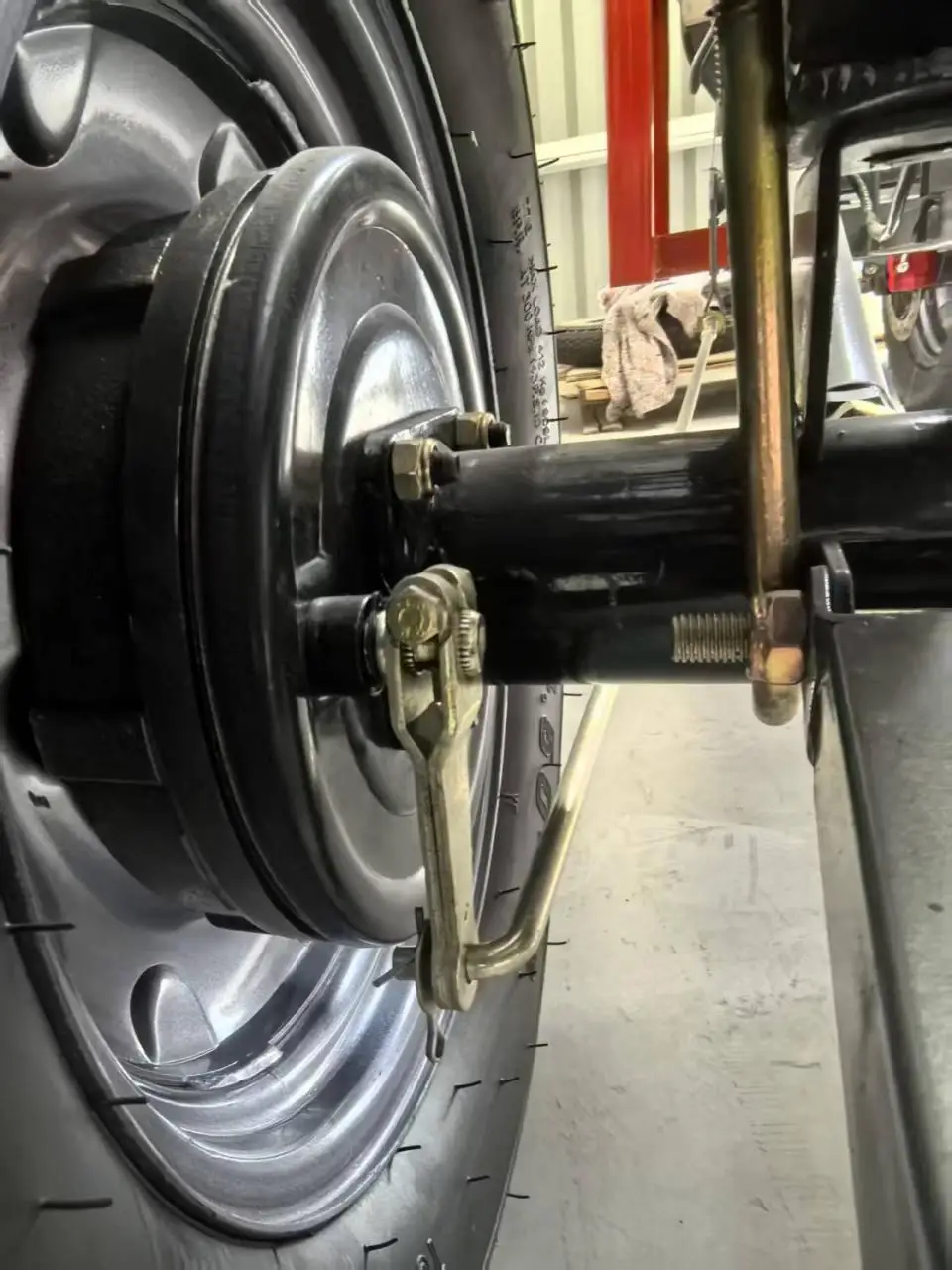

- Braking system：Front disc and rear drum: Quick response, with stronger braking force under heavy load.

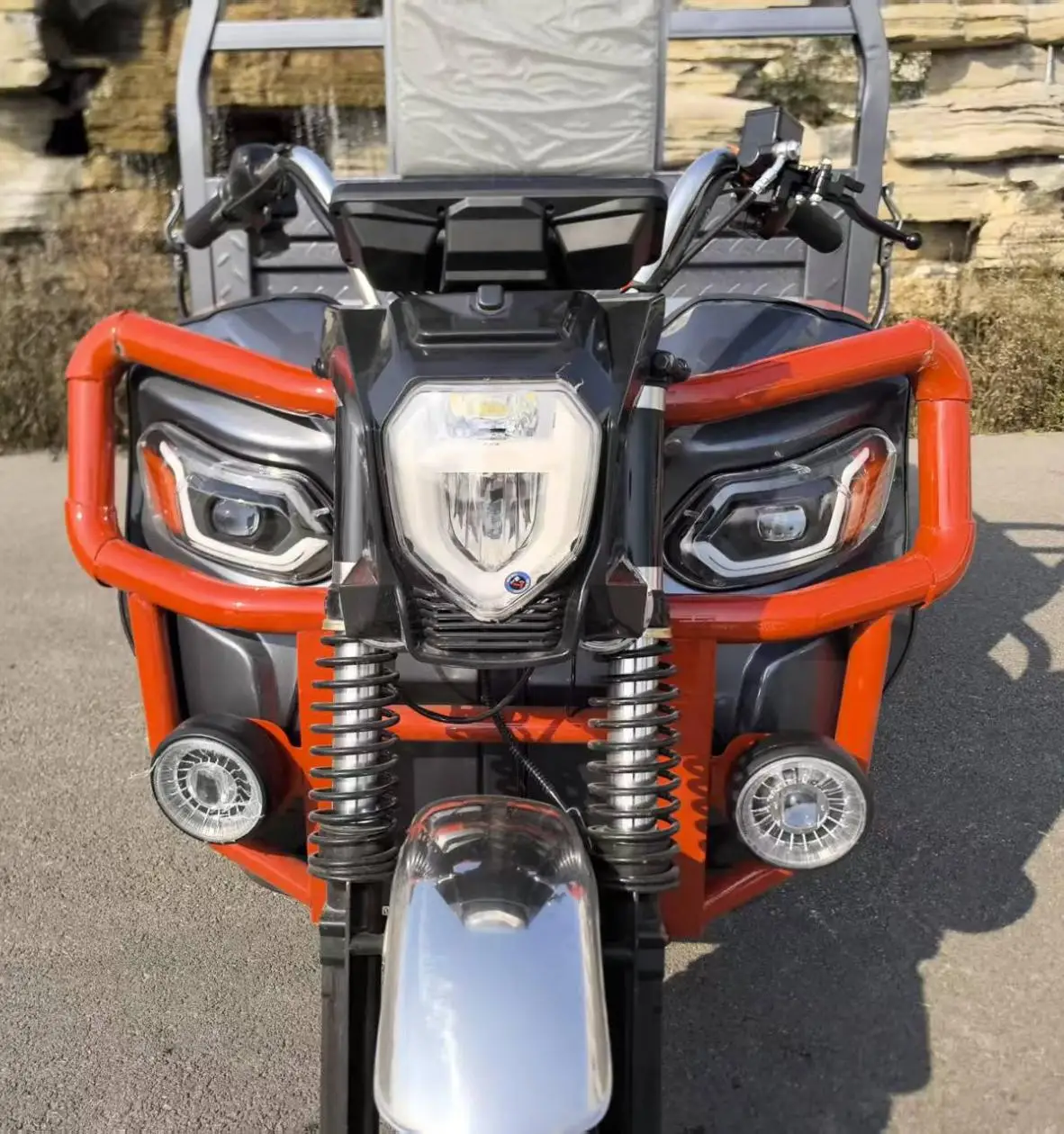

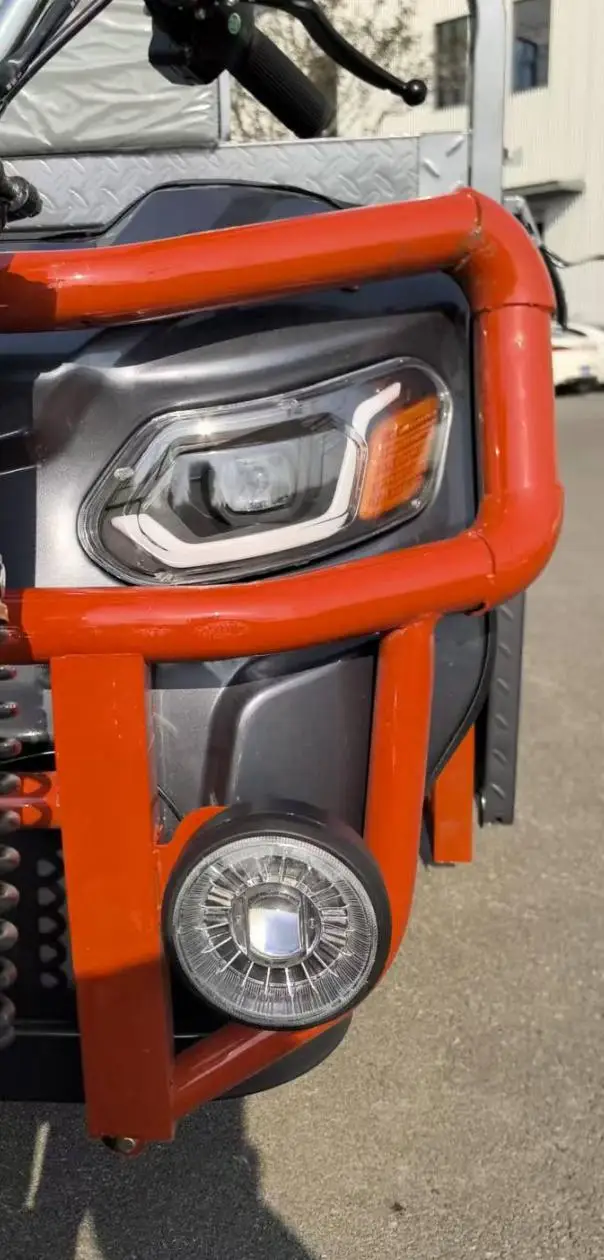

- Multi-light assembly：The main light and auxiliary light work in coordination to provide all-round lighting. The design is novel, enhancing the overall aesthetic appeal of the vehicle.

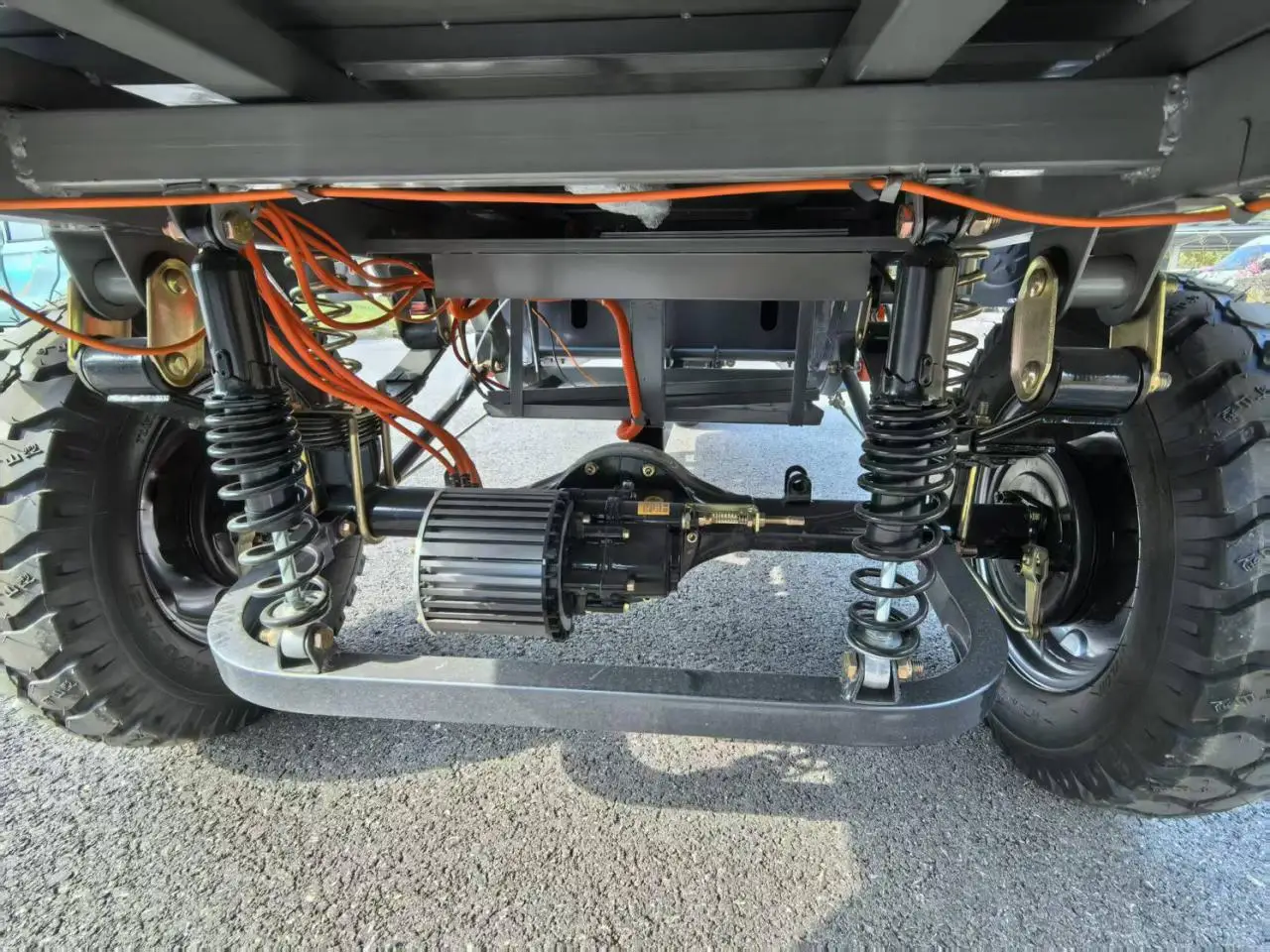

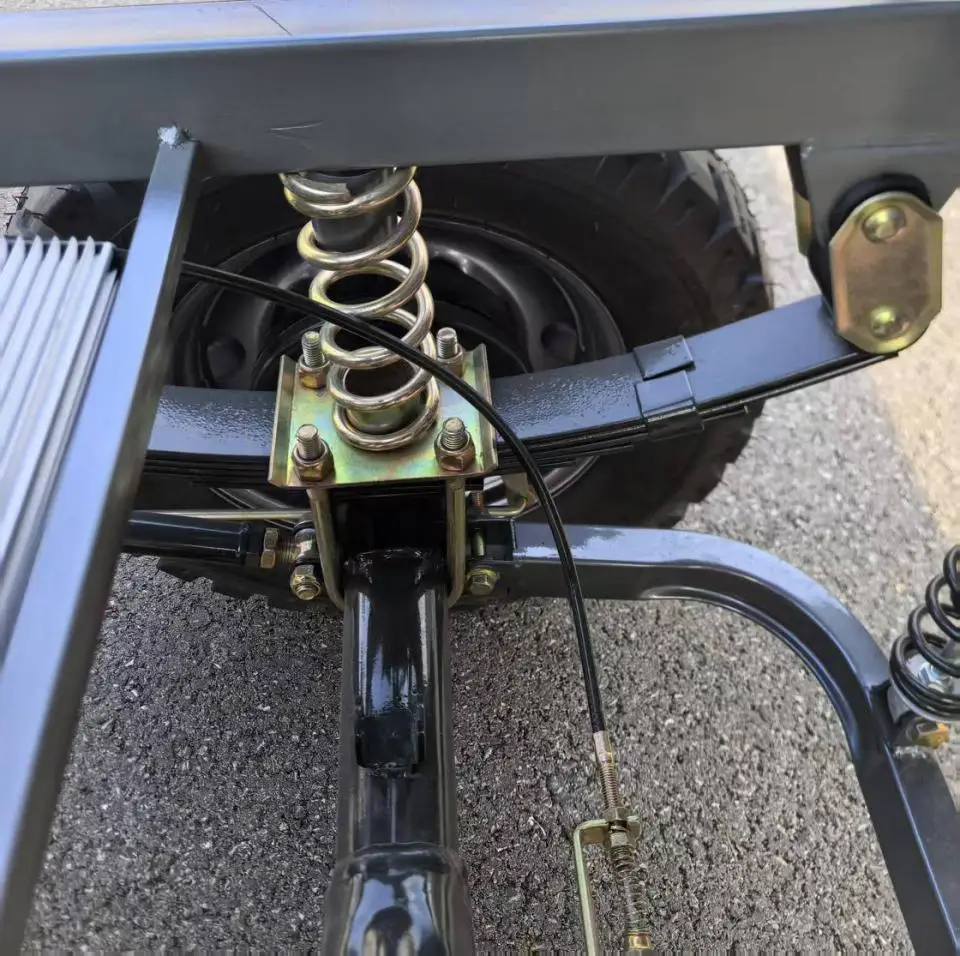

- Shock absorption：It adopts helical springs and multi-leaf leaf springs for shock absorption design, providing a smoother ride and adapting to complex road conditions.

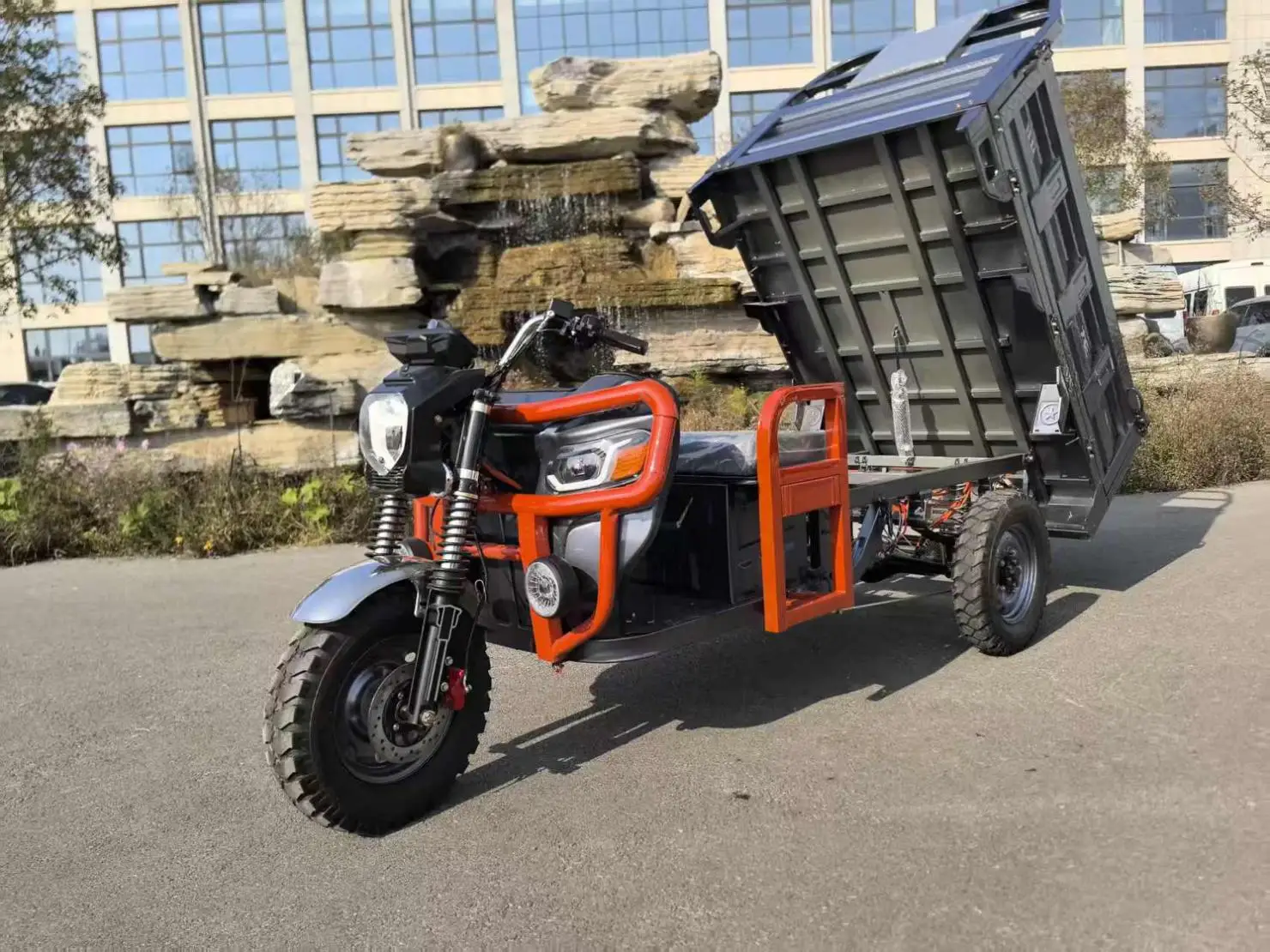

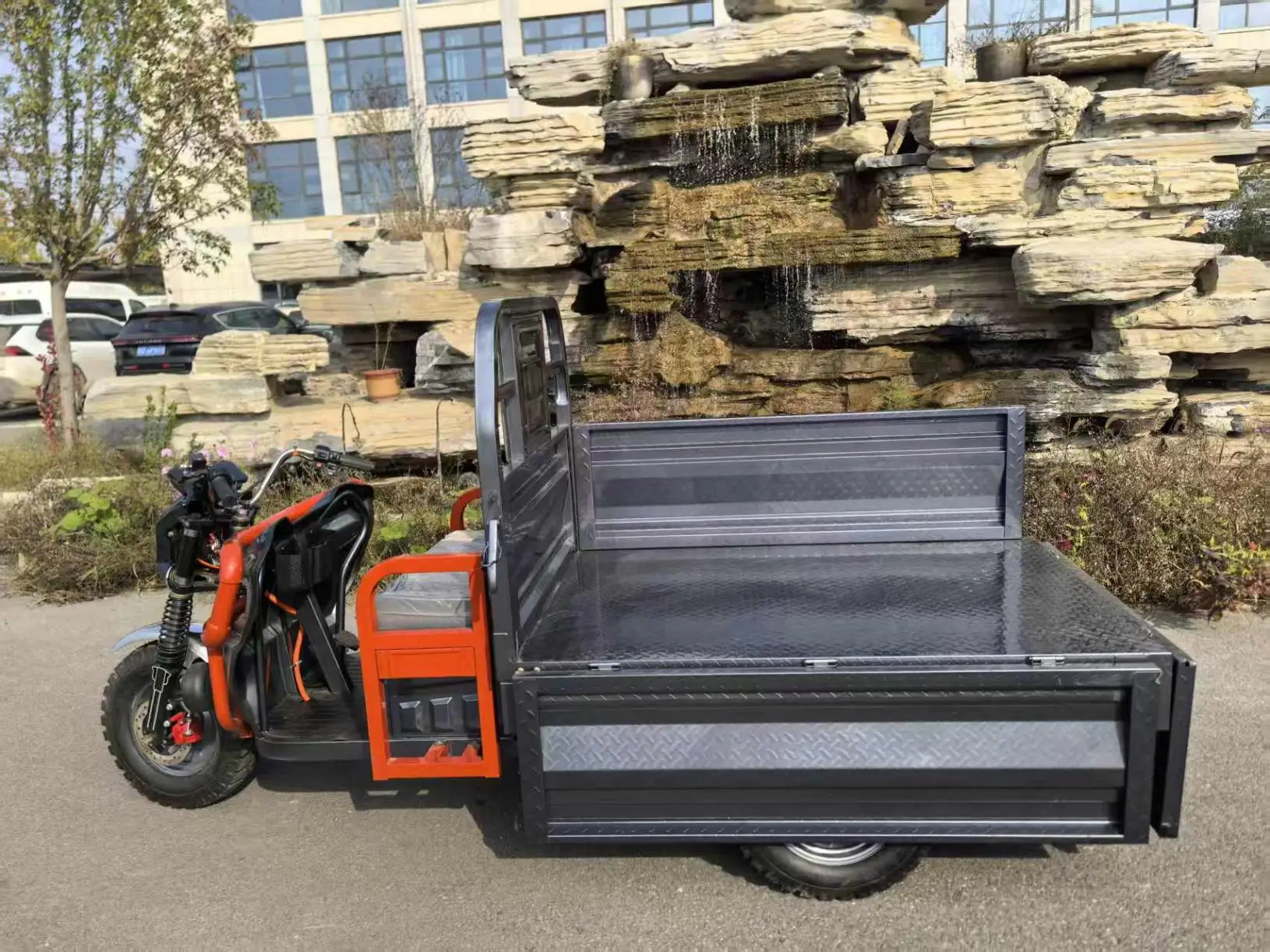

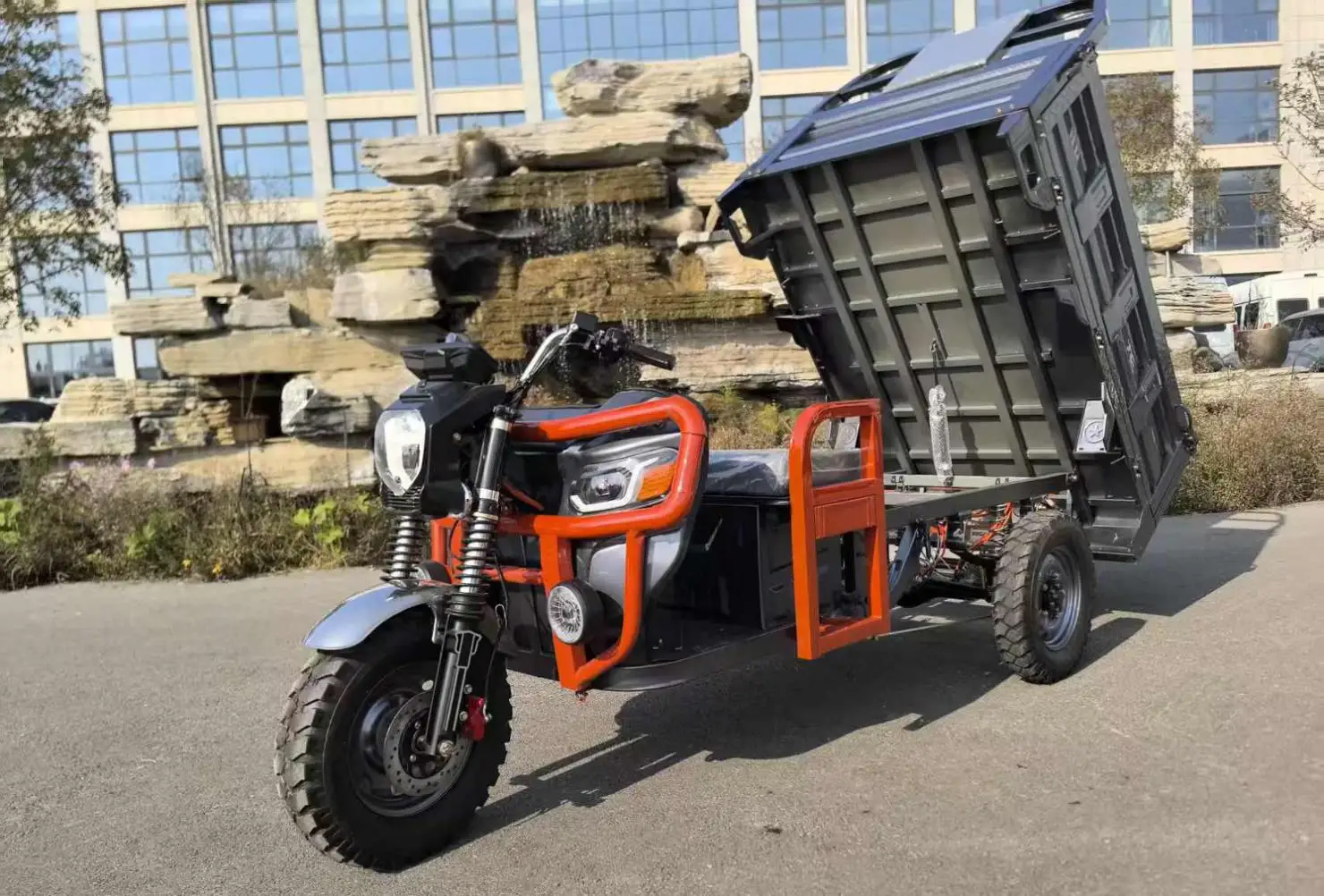

- Tipping bucket vehicle type, meeting different transportation demands, with reasonable compartment layout; The cargo space is sufficient. Is a collection of practicability and durability in the integration of the electric tricycle.
Parameters
| Parameter Information | Information |
| Overall Vehicle Dimensions (L×W×H) | 3900mm*1185mm*11550mm |
| Internal Cargo Compartment Dimensions(L×W×H) | 1525mm*1020mm*450mm
1600mm*1100mm*450mm |
| Battery compartment size(L*W*H) | 530mm*470mm*290mm |
| Unladen Ground Clearance(mm) | 190mm |
| Rear Wheel Track/Wheelbase | 970mm/2005mm |
| Curb weight(KG) | 246 |
| Motor Power | 1500w |
| Transmission Gears | Low Gear/High Gear |
| Front/Rear TyreDesignation | Front:5.00-12 Rear:4.50-12 |
| Front/Rear shock absorption | – |
| Service Brake System | Hand-Operated Service
Brake&Foot-Operated Service |
| Brake Type (Disc/Drum) | Front Brake Type: Disc，Rear Brake
Type:Drum |
| Parking Brake | Hand-Operated Parking Brake
&Foot-Operated Parking Brake |
| Lithium Iron Battery/lead acid battery | Choosable |
| Charging time(h) | – |
| Range (City)(km) | – |
| Max speed(km/h) | 25-45 |
| Speed Mode | Low/Medium/High Speed Mode |
| Rated Payload Capacity(KG) | |
| SKD Semi-Skid Frame | 32PCS/40HQ |
| CKD is completely dismantled | 58PCS/40HQ |
| Excluding tax, excluding batteries, excluding delivery charges |
