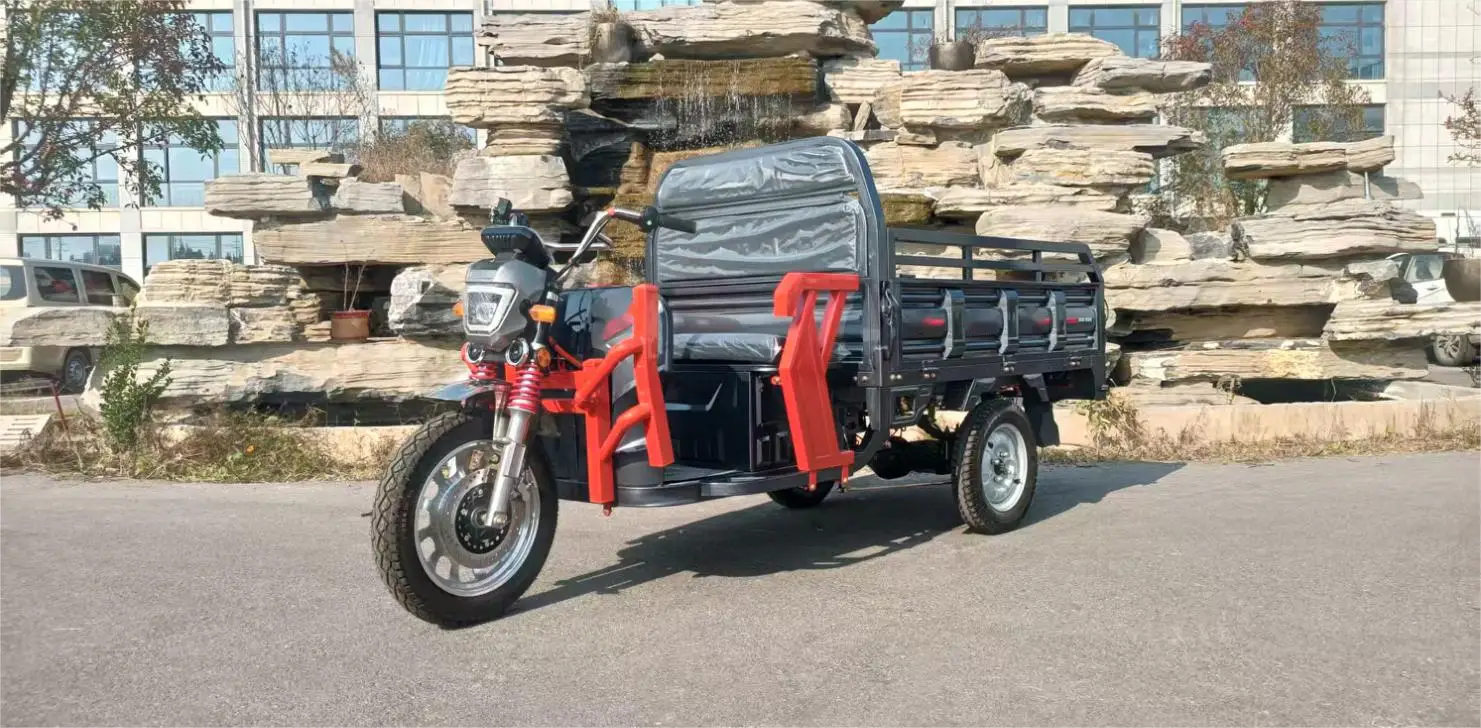

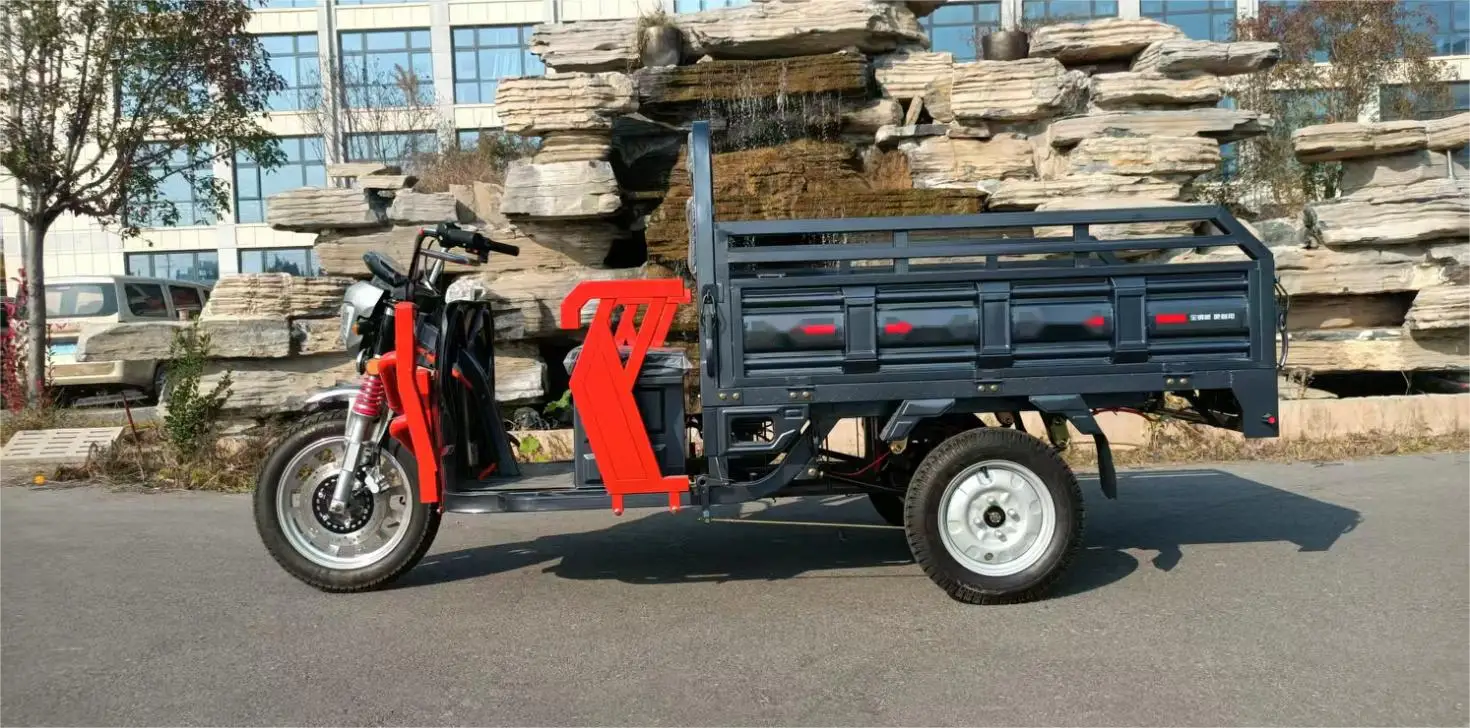

1.6M-BT-B01.2-BT Detail Photo

1.6M-BT-B01.2-BT Details

Characteristics

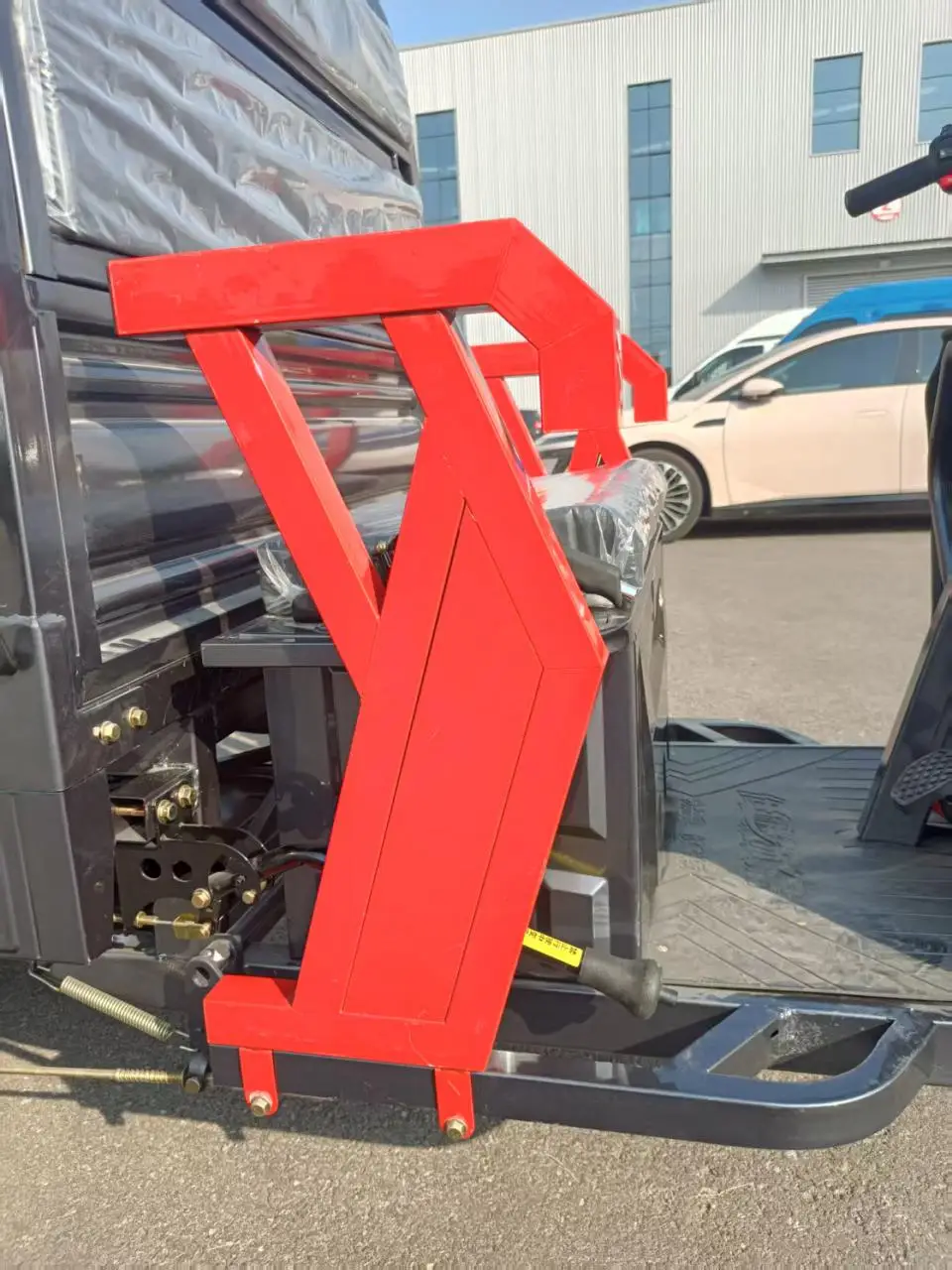

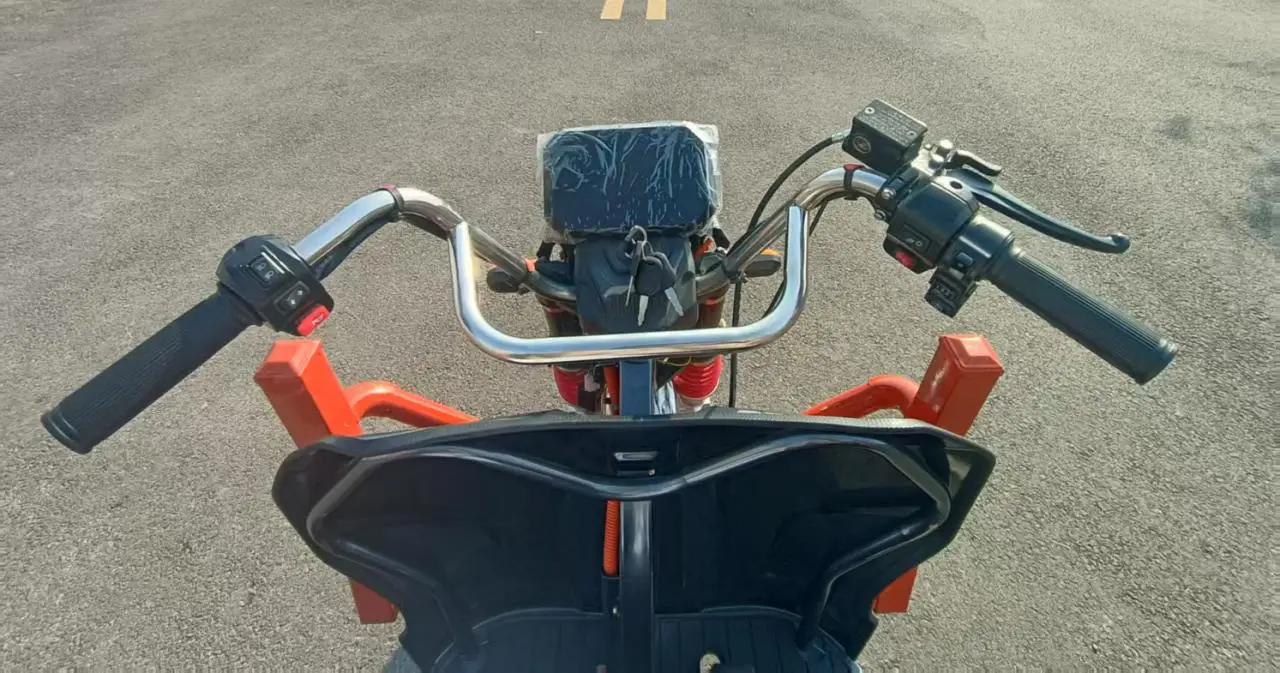

  • The handlebars and armrests are innovatively designed, enhancing the aesthetic appeal of the electric vehicle. The handlebars are equipped with a crossbeam, allowing for the installation of audio equipment.

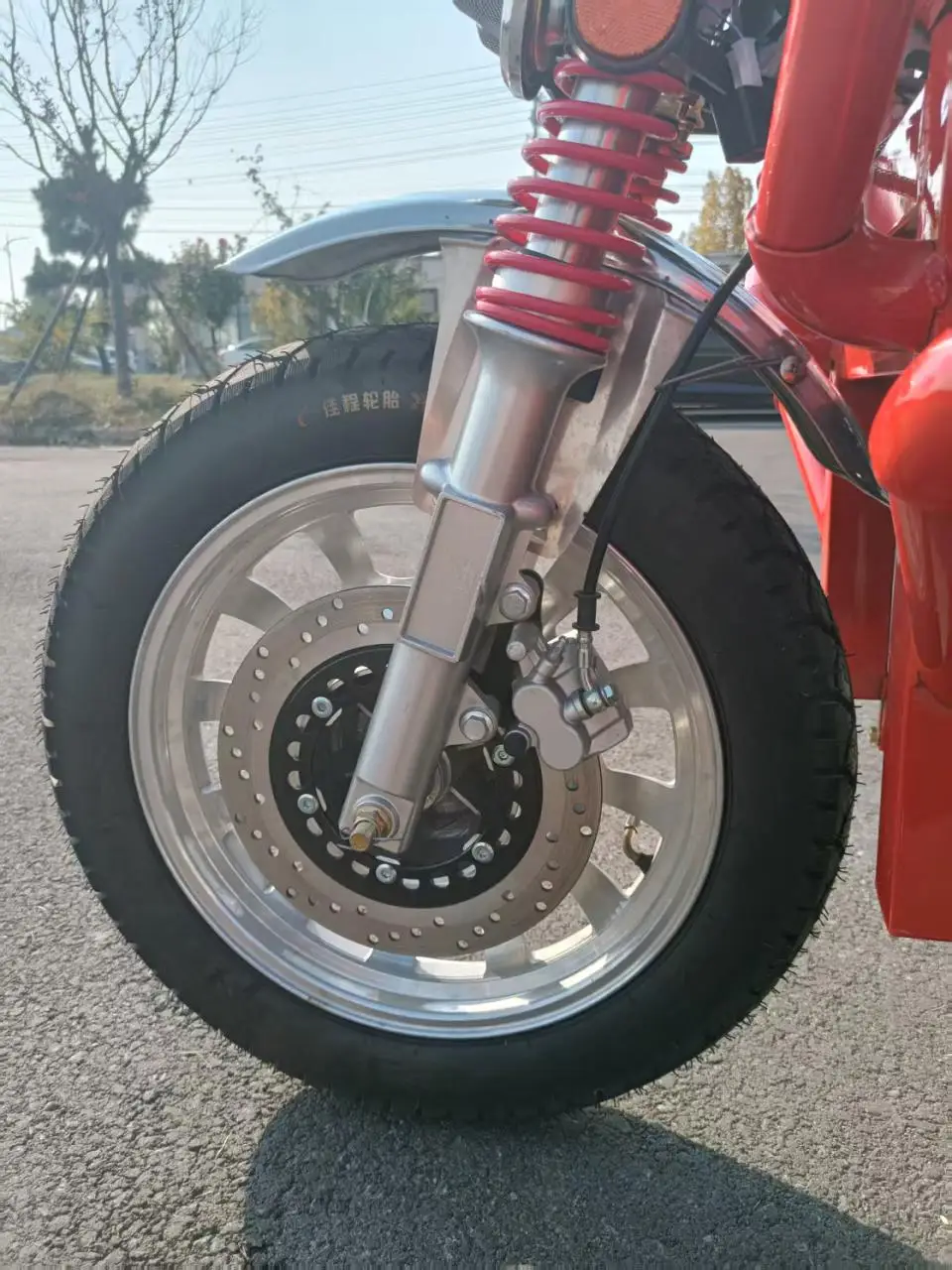

  • Braking system：Front disc and rear drum: Smoother braking and reduced risk of rollover. Adapt to various road conditions.

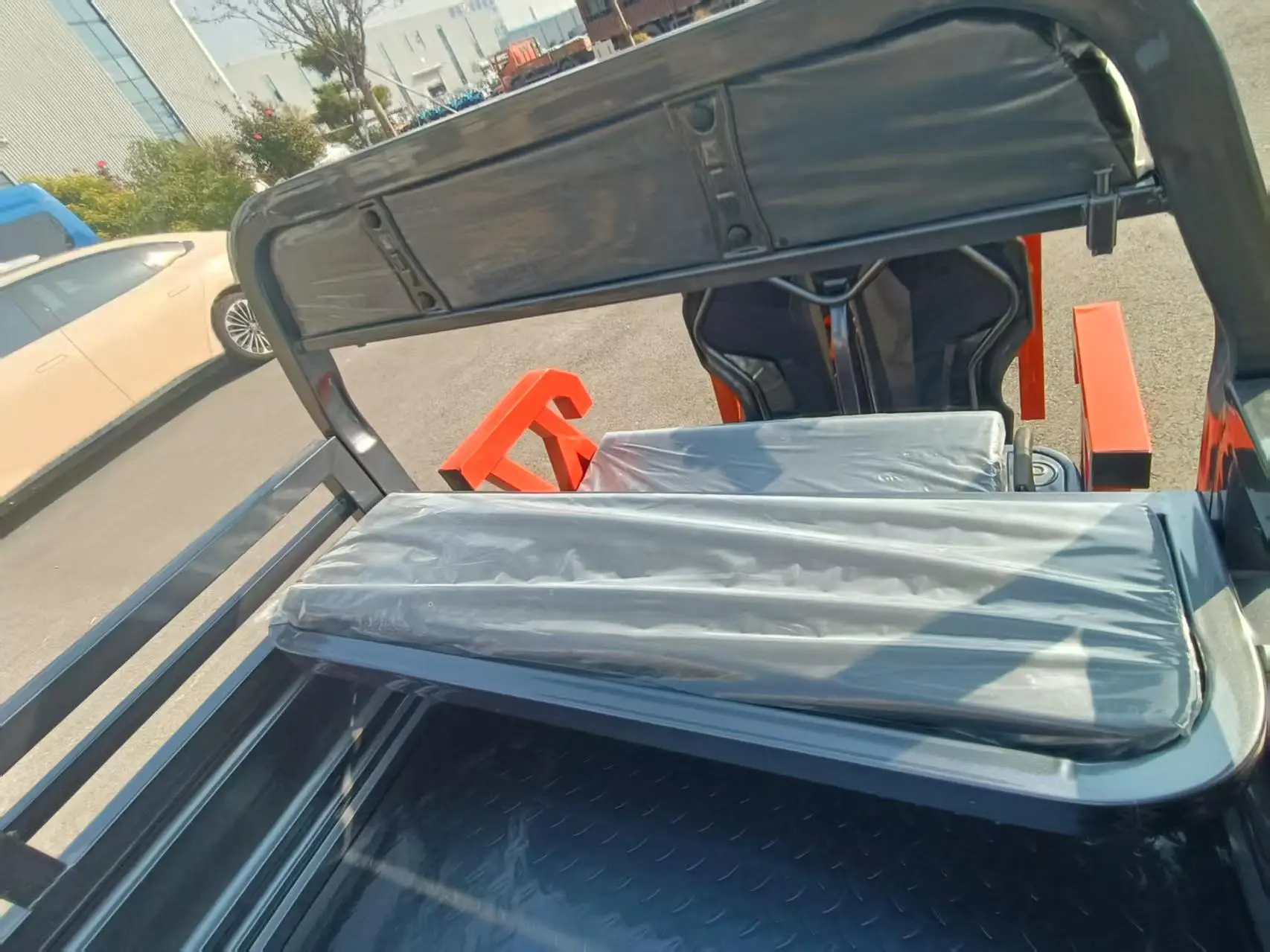

  • Carriage：The carriage is equipped with independent seats that can be retracted and retracted freely. It has the functions of carrying people and goods and is suitable for various uses.

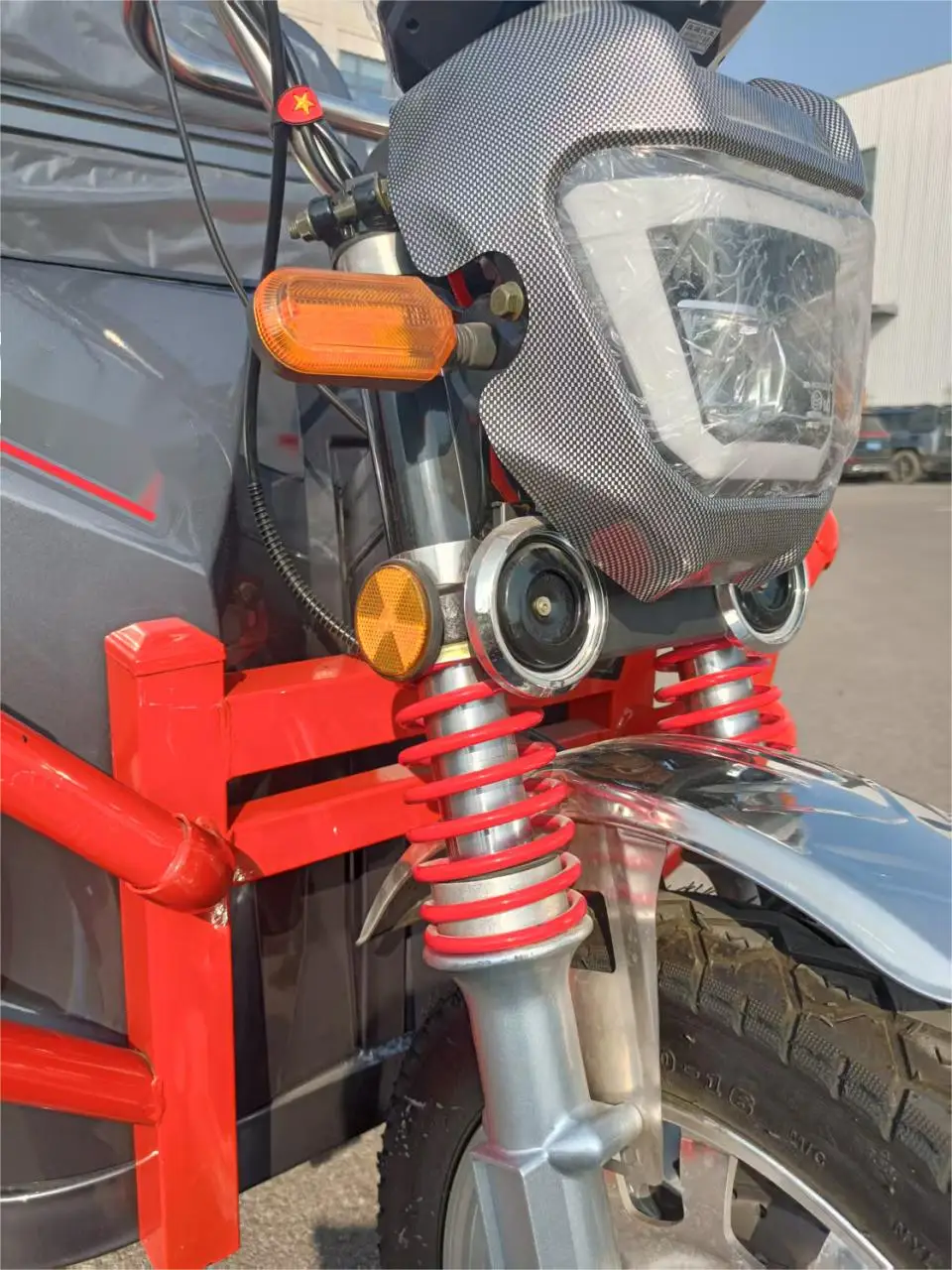

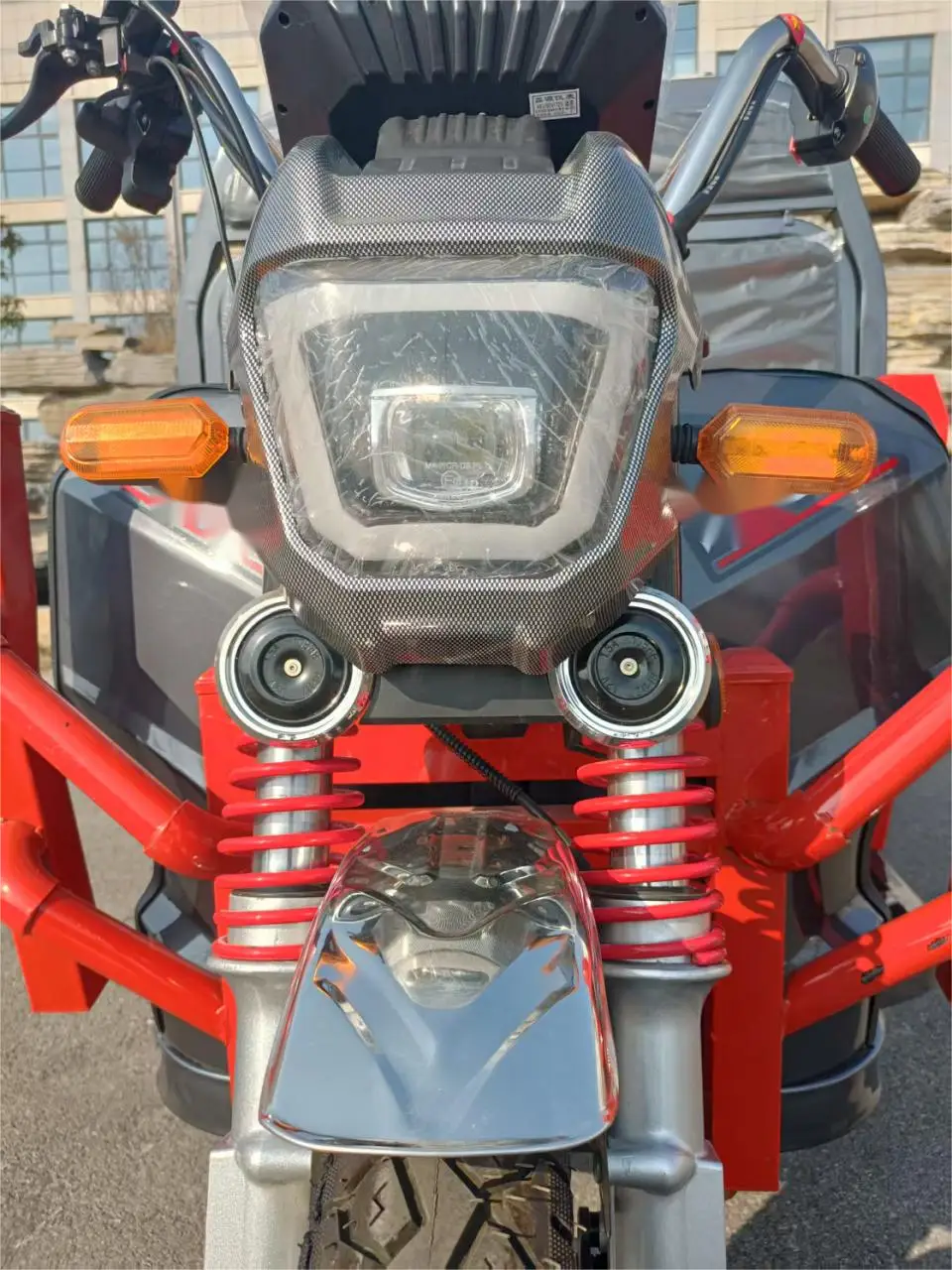

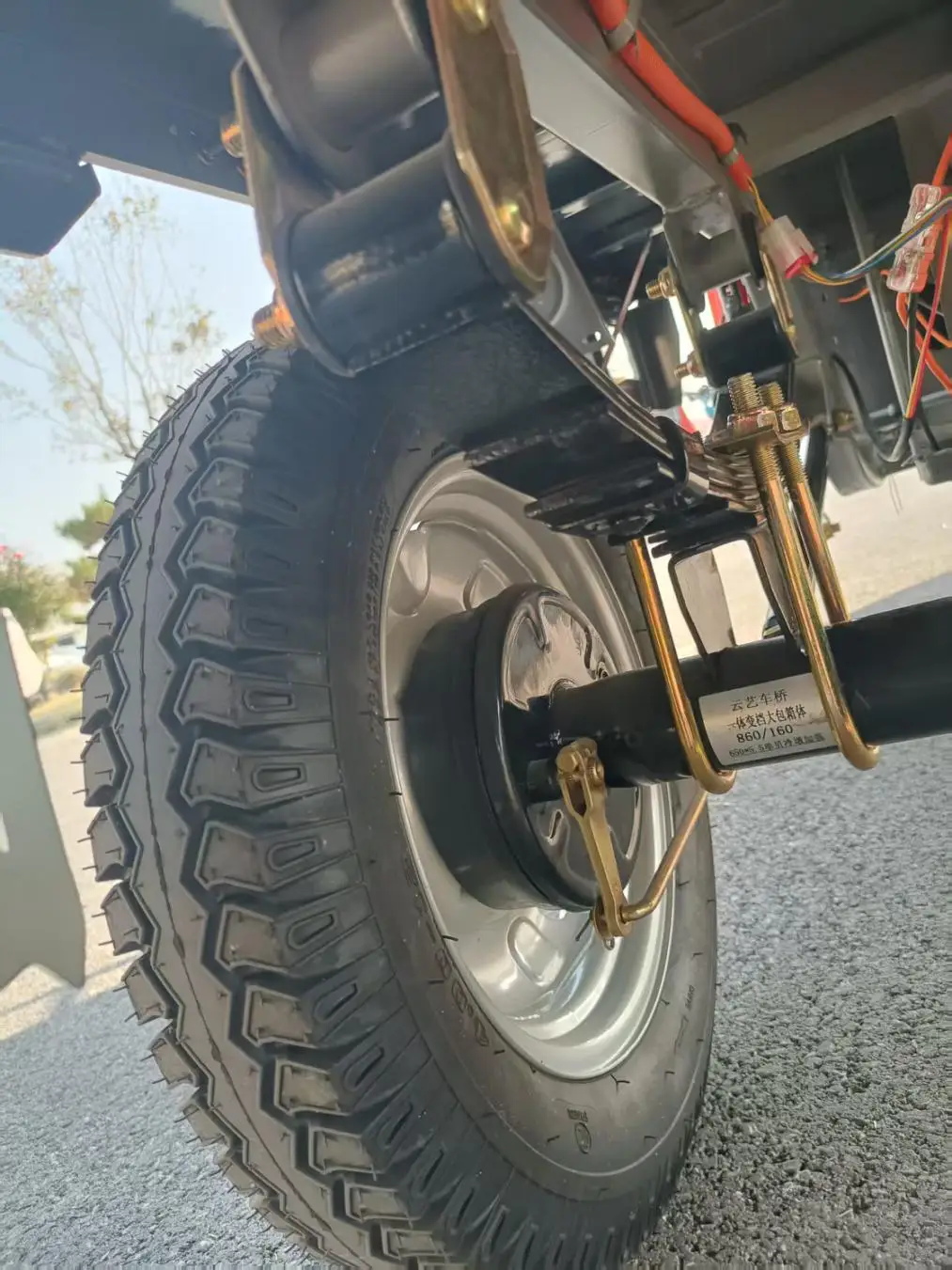

  • Shock absorption：Special external spring shock absorbers can effectively reduce road bumps and are suitable for various road conditions.

Parameters

Parameter Information Information Postscript
Certification Types EEC,ISO,CCC
Overall Vehicle Dimensions (L×W×H) 3140mm*1100mm*1420mm BT
Internal Cargo Compartment Dimensions(L×W×H) 1550mm*1020mm*460mm
Unladen Ground Clearance(mm) ≥160
Rear Wheel Track/Wheelbase 960mm/2005mm
Curb weight(KG) 290 12.2KG*6/72V45AH
Motor Power 1500w PMSM
Transmission Gears Low Gear/High Gear
Front/Rear TyreDesignation Front:110/90-16 Rear:4.00-12 ETRTO 2023 M/C
Front/Rear shock absorption –
Service Brake System Hand-Operated Service

Brake&Foot-Operated Service
Brake Type (Disc/Drum) Front Brake Type: Disc，Rear Brake

Type:Drum
Parking Brake Hand-Operated Parking Brake

&Foot-Operated Parking Brake
Power Battery Lead acid battery
Battery Specifications 72V45AH /60V58AH
Charging time(h) 6-8h/7-10h
Range (City) 50-70
Max speed(km/h) 25/45
Speed Mode Low/Medium/High Speed Mode
Rated Payload Capacity(KG) 300
Maximum Payload Capacity(KG) 500
Maximum Grade ability(°) ≤30 SAE J1492 Full-load Continuous Climb
SKD Semi-Skid Frame 32pcs/40HQ
CKD completely dismantled 62pcs/40HQ
Excluding tax, excluding batteries, excluding delivery charges
