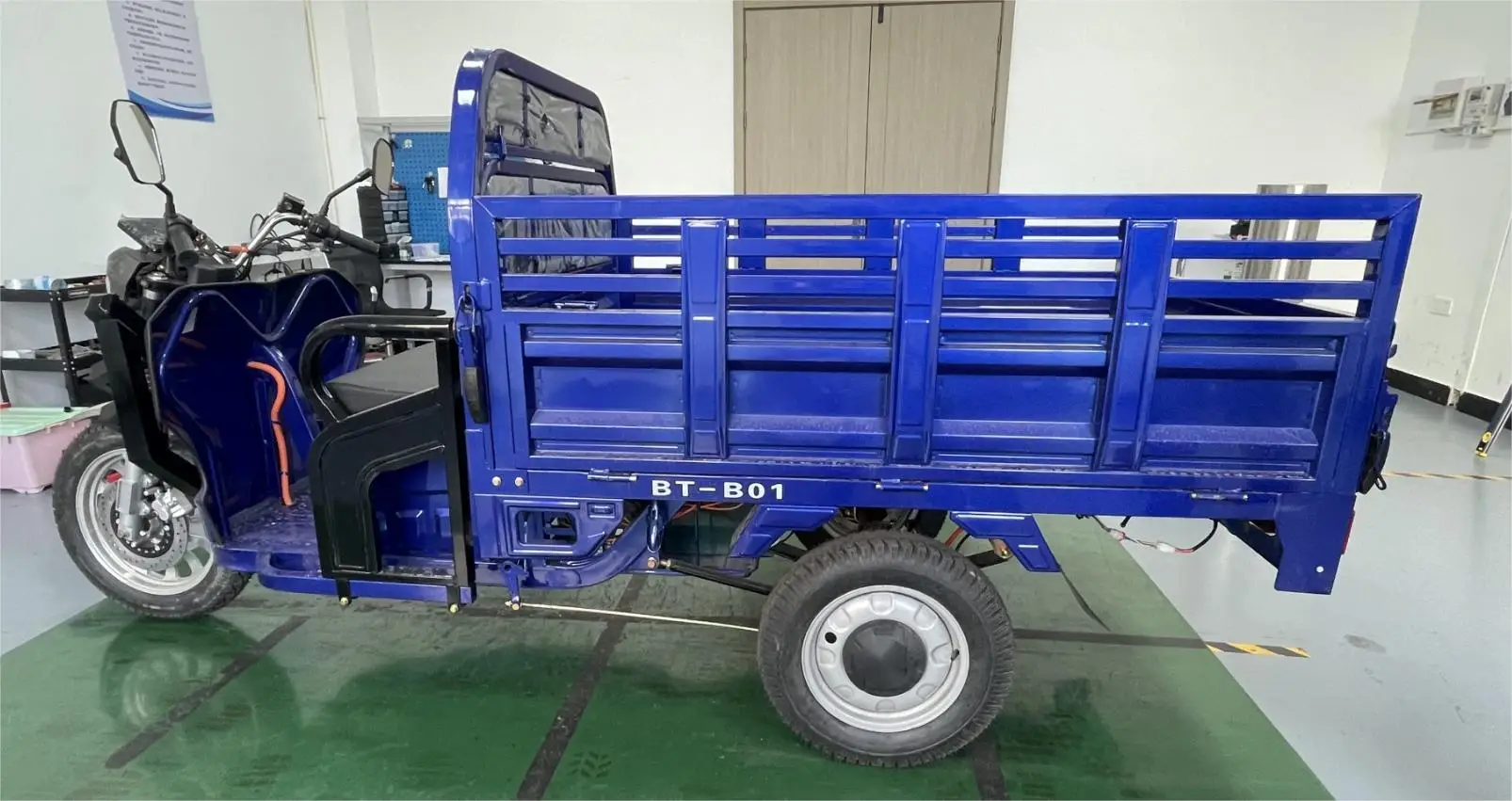

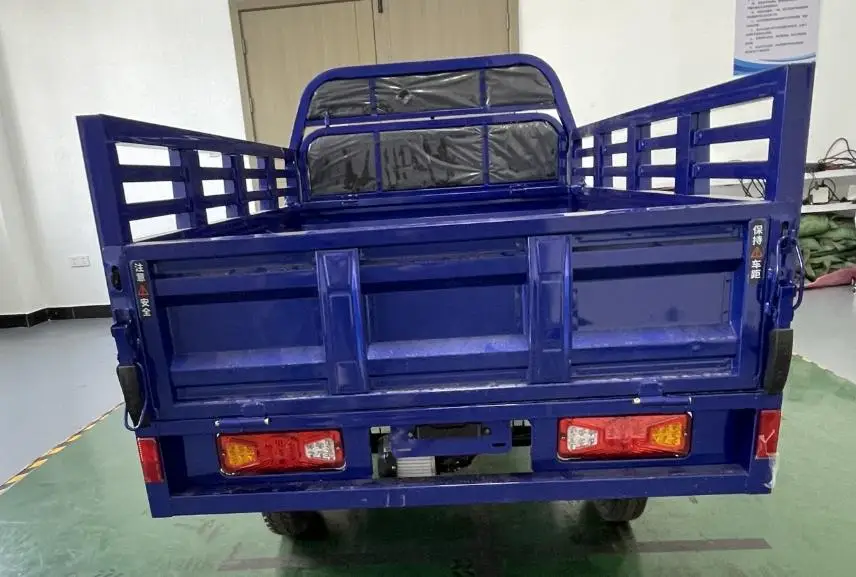

1.6M-BT-B01.1-BT Detail Photo

1.6M-BT-B01.1-BT Details

Characteristics

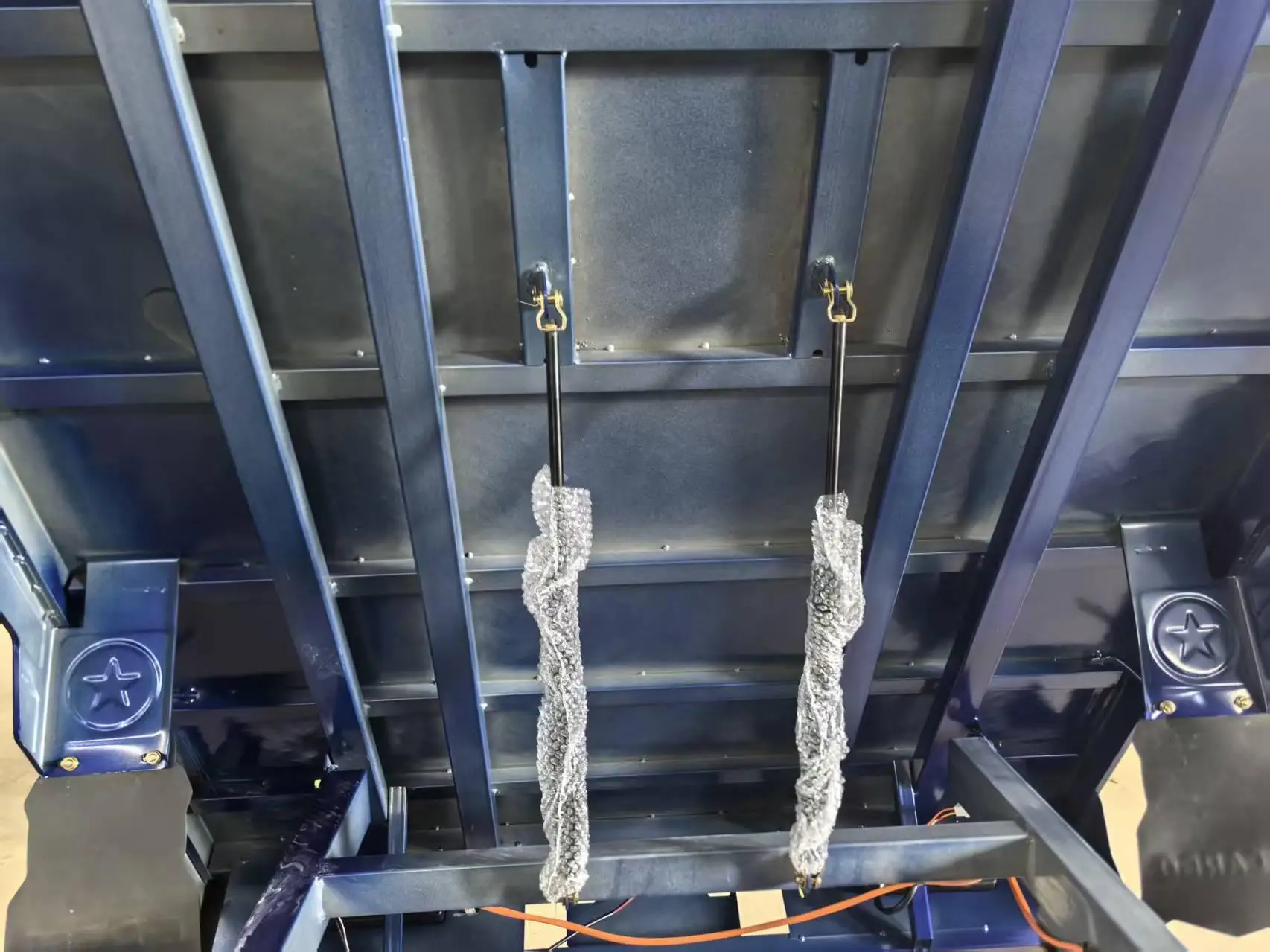

  • Double hydraulic struts facilitate the later inspection and maintenance of the vehicle. Enhance efficiency and operational safety.

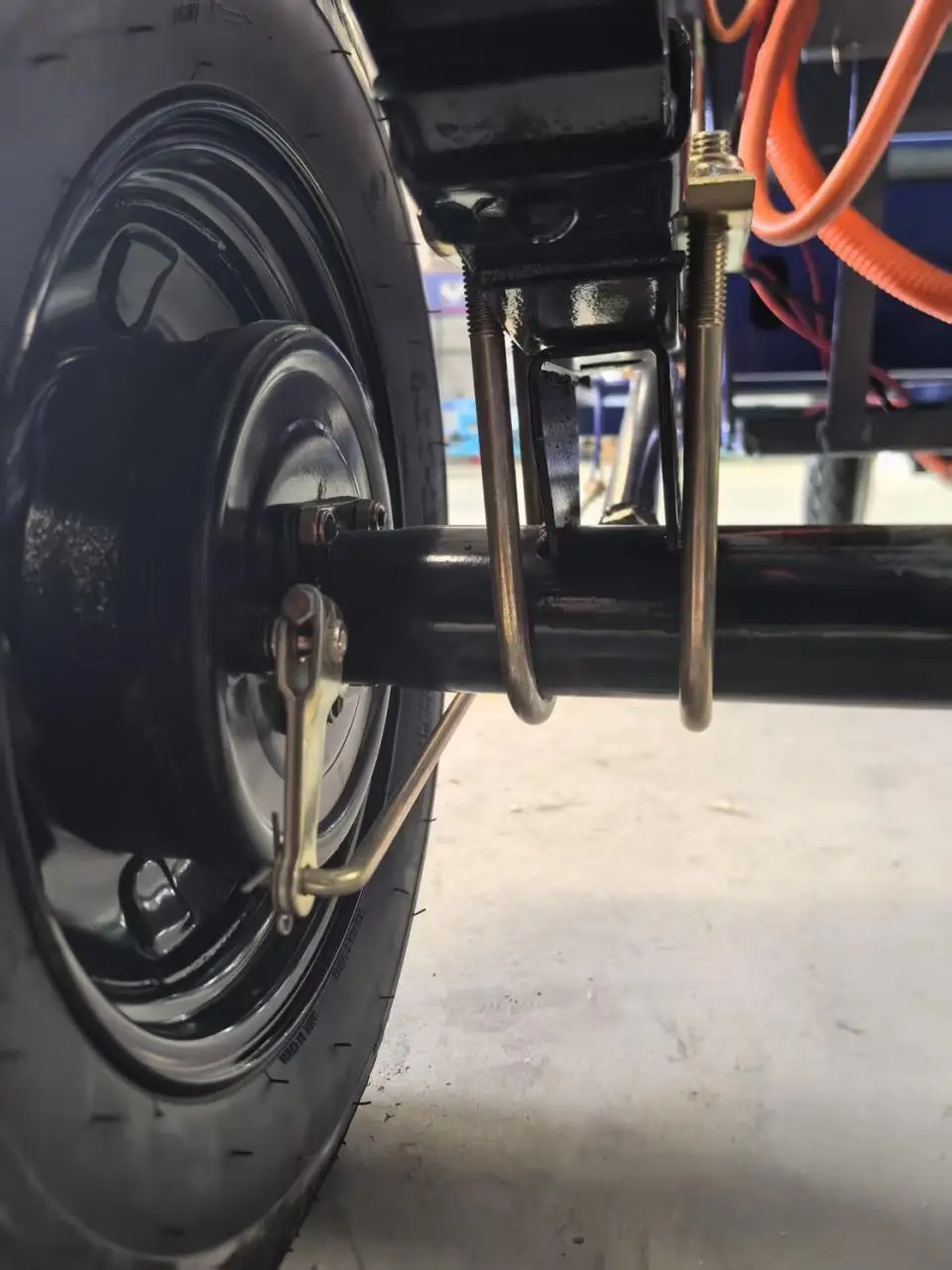

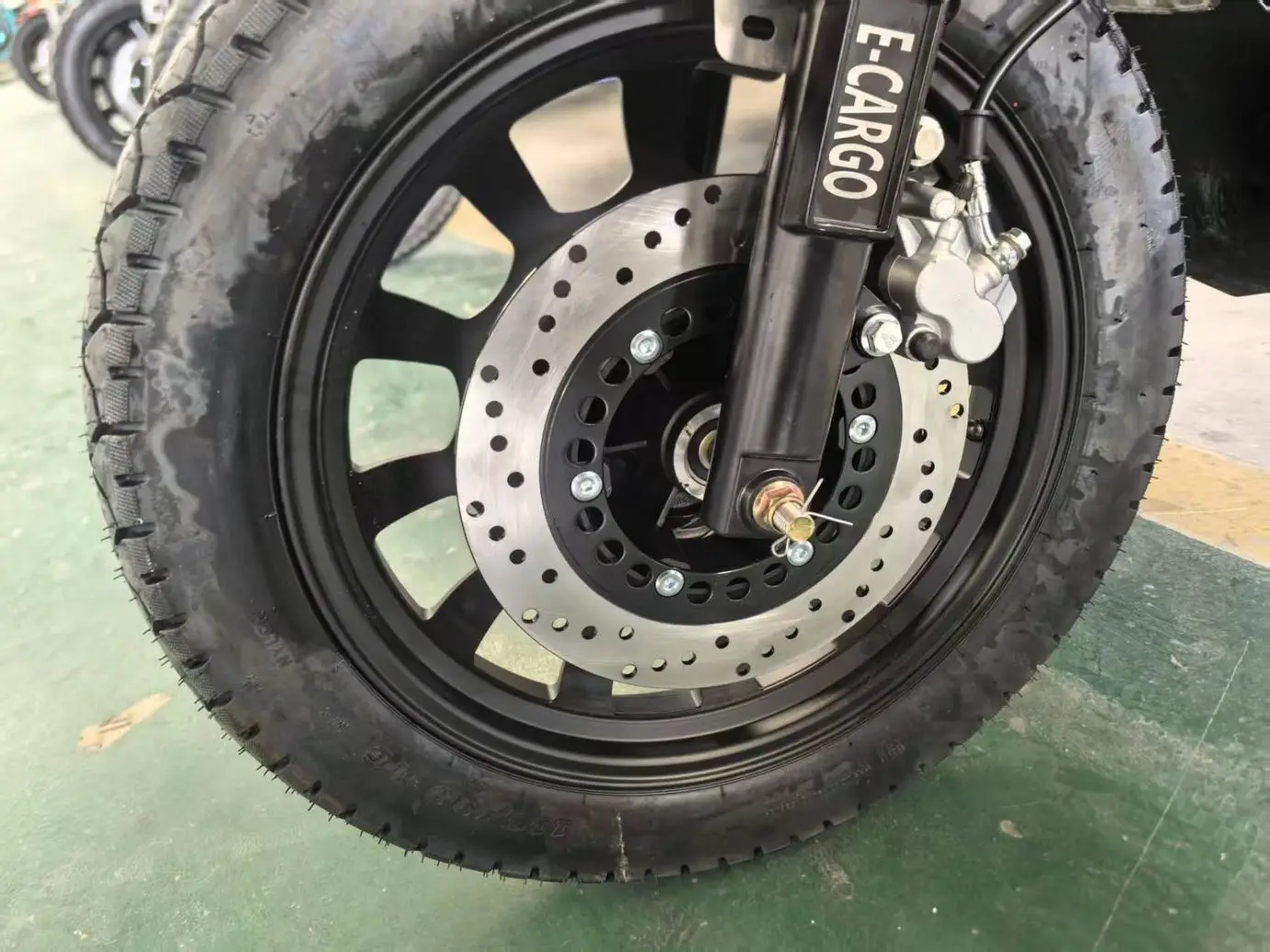

  • Braking system：Front disc and rear drum:Smoother braking and reduced risk of rollover. Adapt to various road conditions.

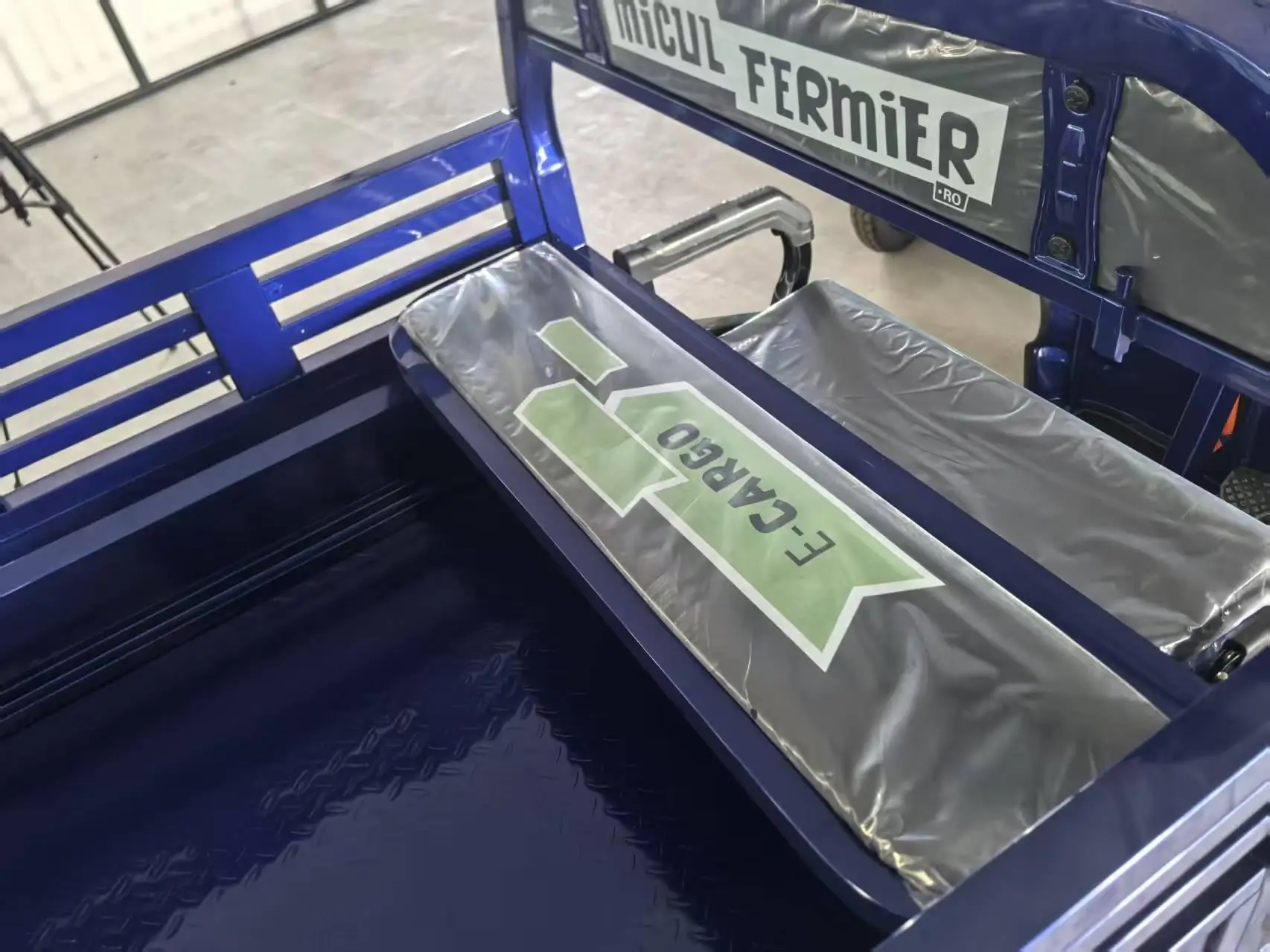

  • Carriage：The carriage is equipped with independent seats that can be retracted and retracted freely. It has the functions of carrying people and goods and is suitable for various uses.

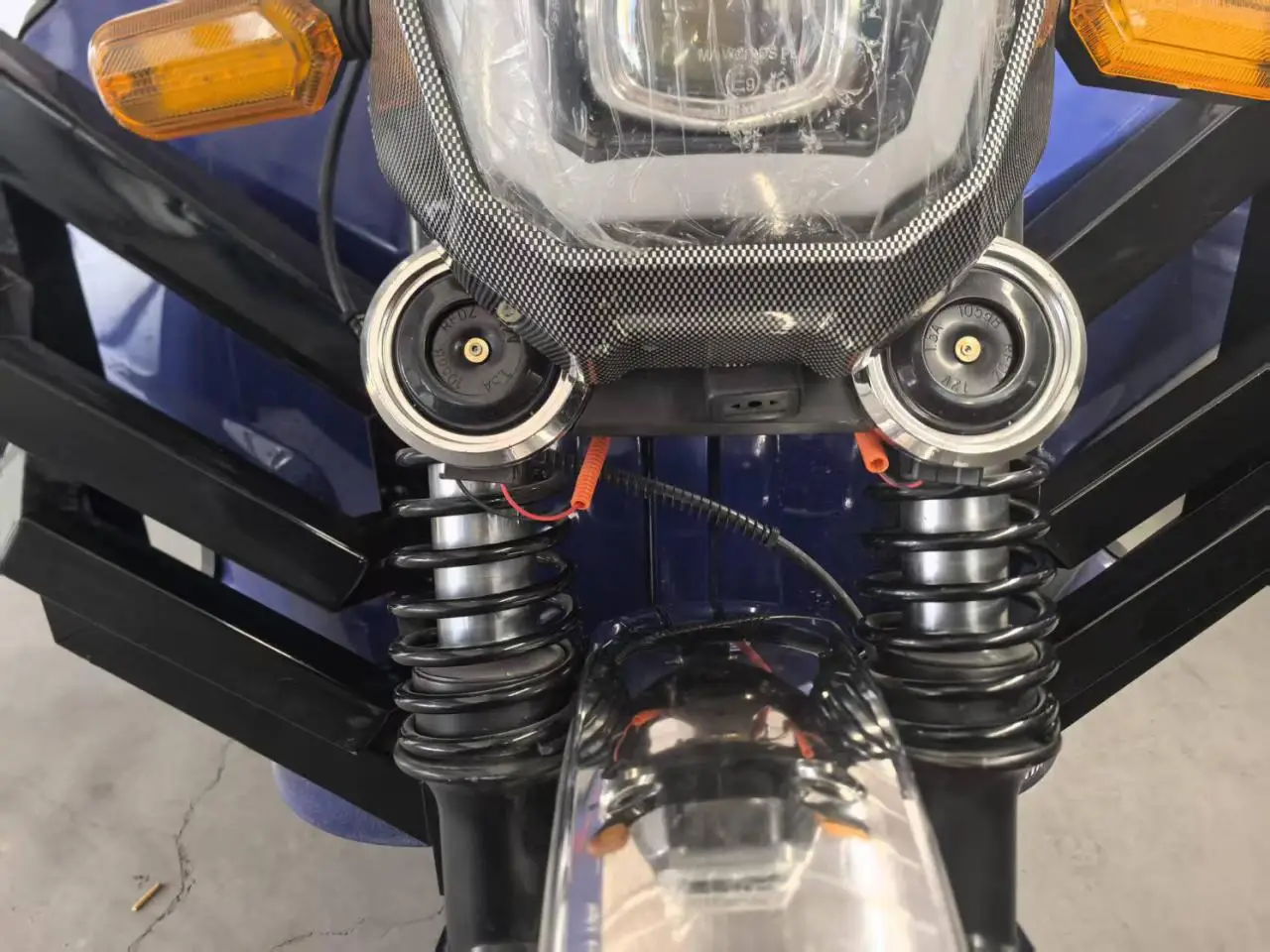

  • Shock absorption：Special external spring shock absorbers can effectively reduce road bumps and are suitable for various road conditions.

Parameters

Parameter InformationInformationPostscript
Certification TypesEEC，ISO，CCC
Overall Vehicle Dimensions (L×W×H)3140mm*1170mm*1420mmBT
Internal Cargo Compartment Dimensions(L×W×H)1515mm*1025mm*500mm
Unladen Ground Clearance(mm)≥160
Rear Wheel Track/Wheelbase970mm/2005mm
Curb weight(KG)29512.2*6KG/72V45AH
Motor Power1500wPMSM
Transmission GearsLow Gear/High Gear
Front/Rear TyreDesignationFront:110/90-16 Rear:4.00-12ETRTO 2023 M/C
Front/Rear shock absorption–
Service Brake SystemHand-Operated Service

Brake&Foot-Operated Service

Brake Type (Disc/Drum)Front Brake Type: Disc，Rear Brake

Type: Drum

Parking BrakeHand-Operated Parking Brake

&Foot-Operated Parking Brake

Power BatteryLead acid battery
Battery Specifications72V45AH /60V58AH
Charging time(h)6-8h/9-10h
Range (City)(km)50-70
Max speed(km/h)25/45
Speed ModeLow/Medium/High Speed Mode
Rated Payload Capacity(KG)300
Maximum Payload Capacity(KG)500
Maximum Grade ability(°)≤30SAE J1492 Full-load Continuous Climb
SKD Semi-Bulk Frame32pcs/40HQ
CKD completely dismantled62pcs/40HQ
Excluding tax, excluding batteries, excluding delivery charges
