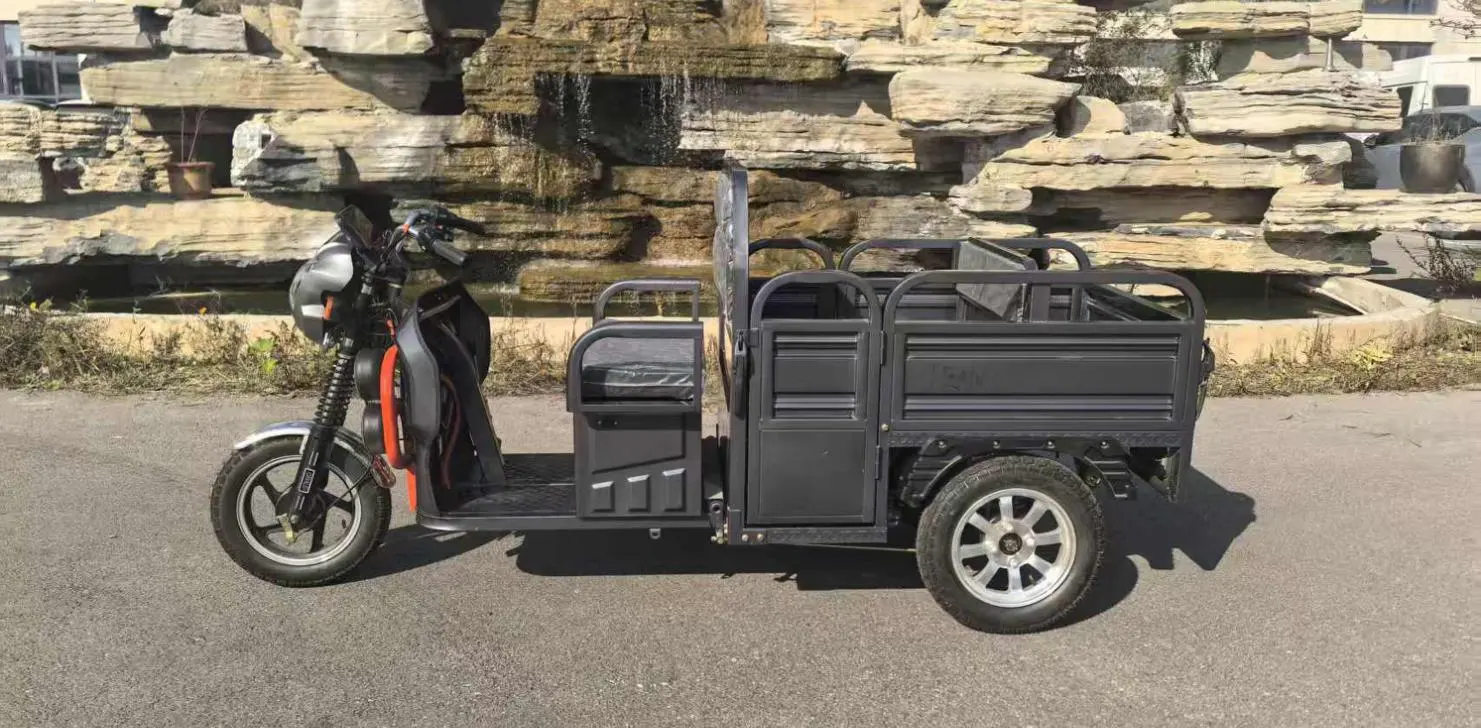

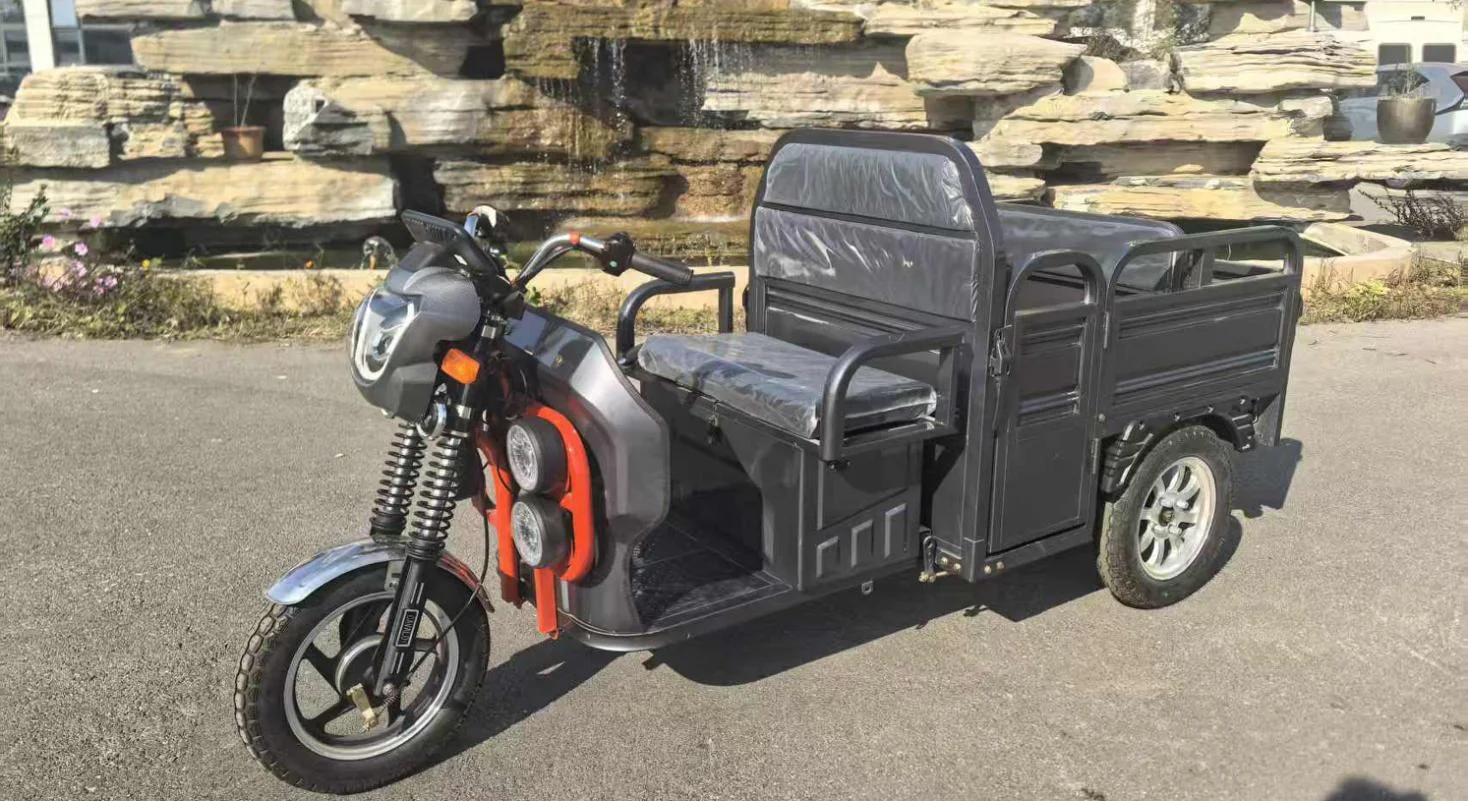

1.2M-BT-B04 Detail Photo
1.2M-BT-B04 Details
Characteristics

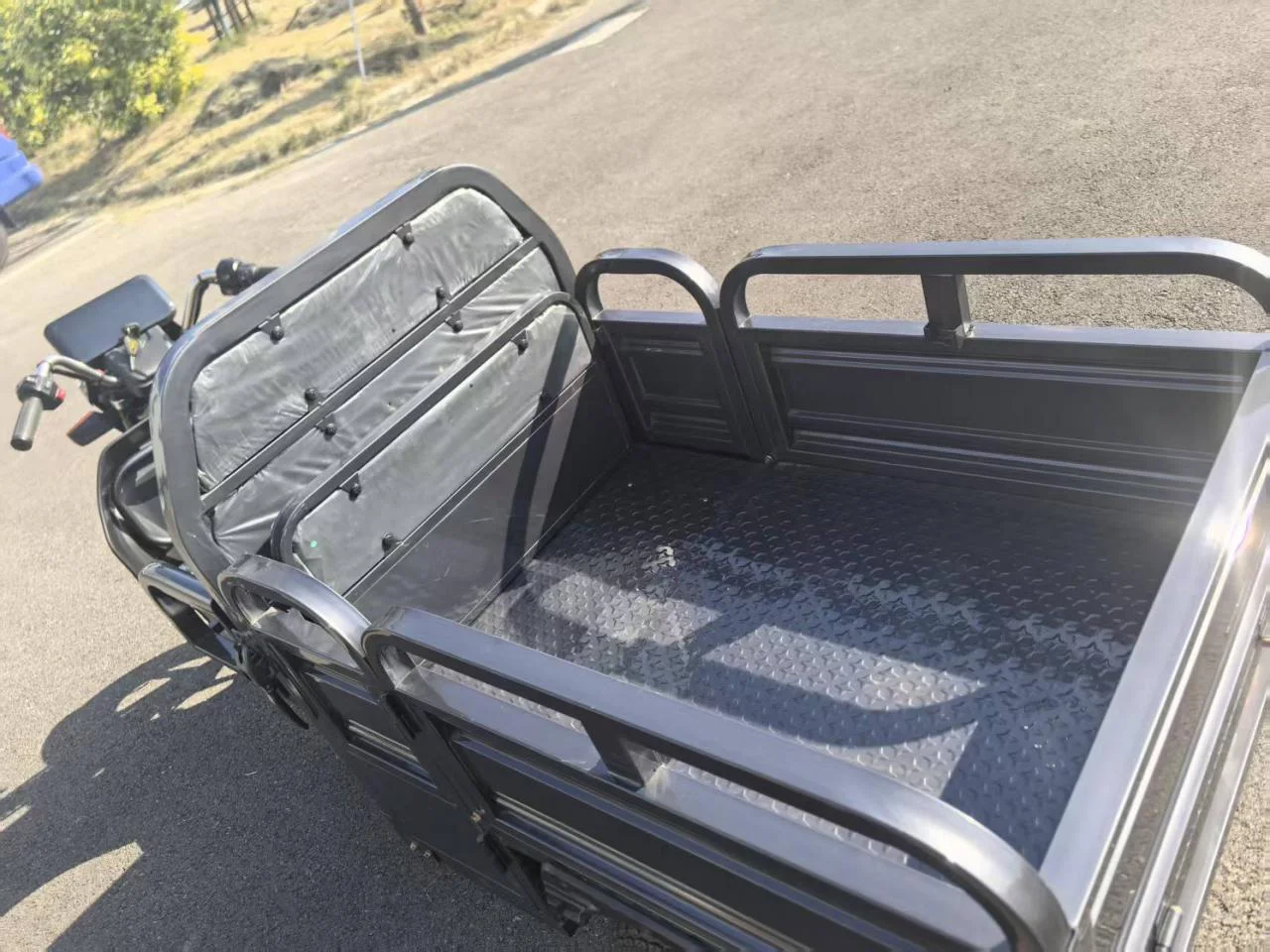

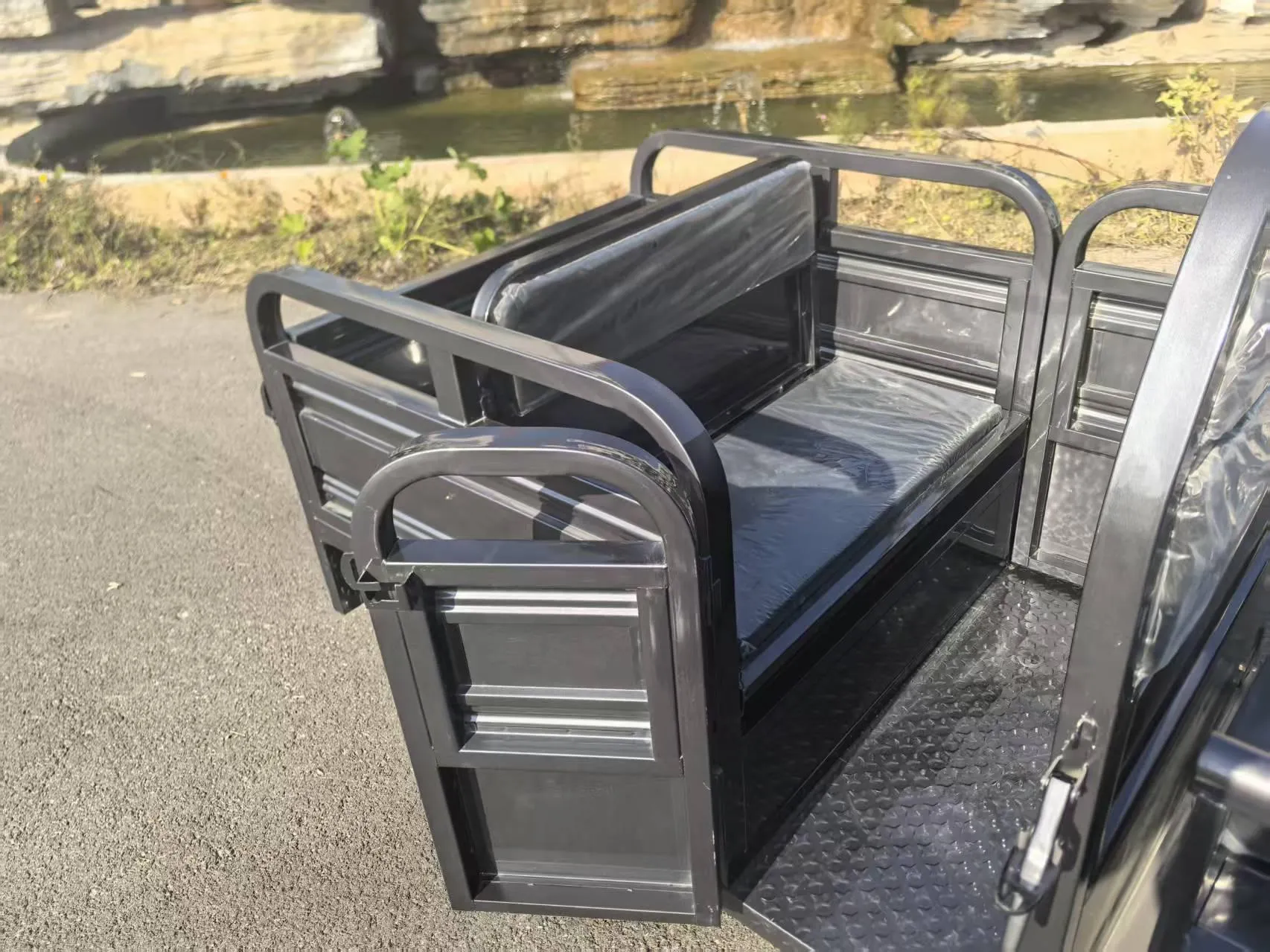

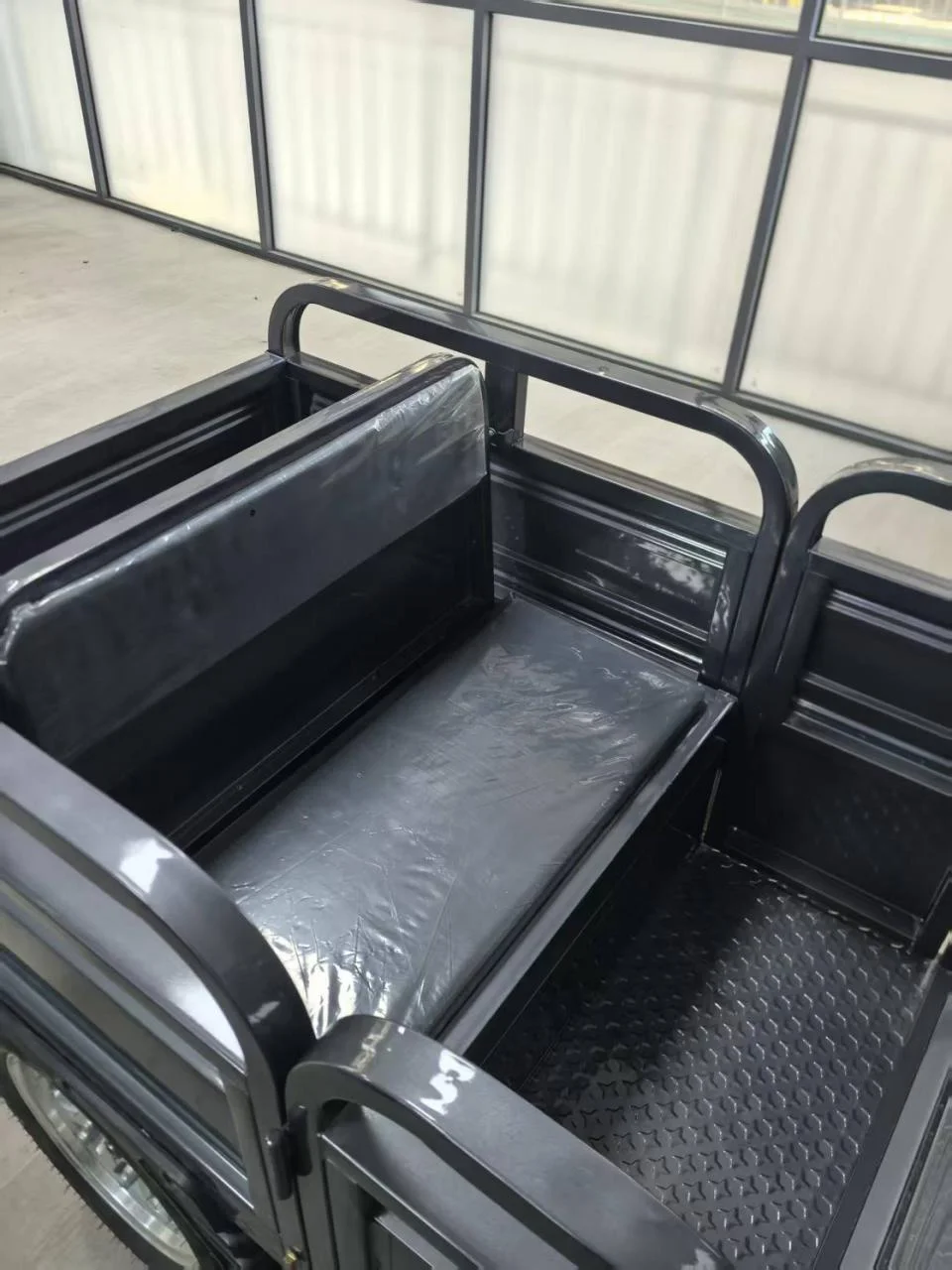

- Carriage：The seats in the carriage can be retracted and retracted, allowing for both passenger and cargo transportation.

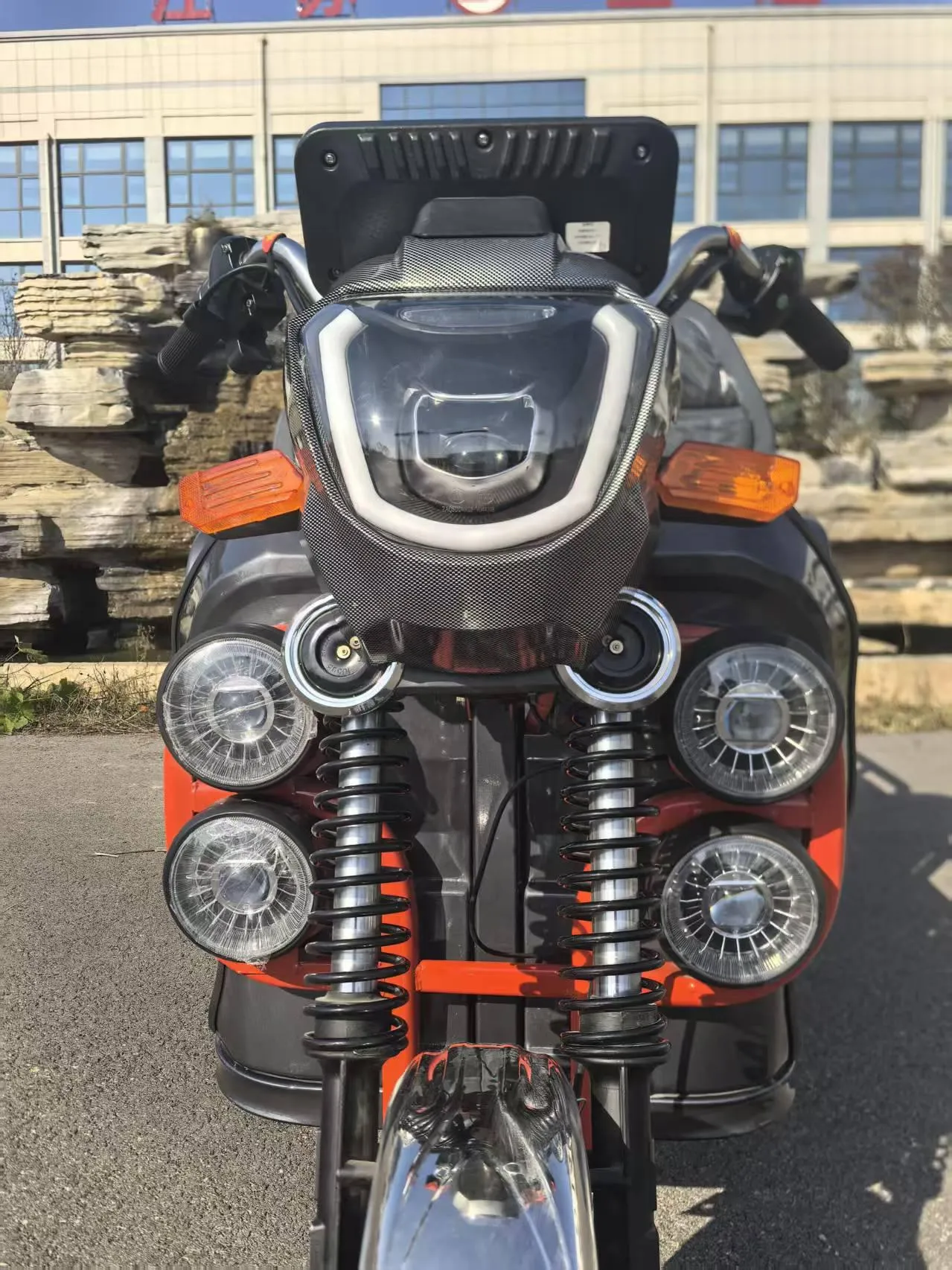

- Multi-light combination：It adopts a combination of multiple side lights and one headlight, providing better lighting effects and higher visibility at night and in bad weather.

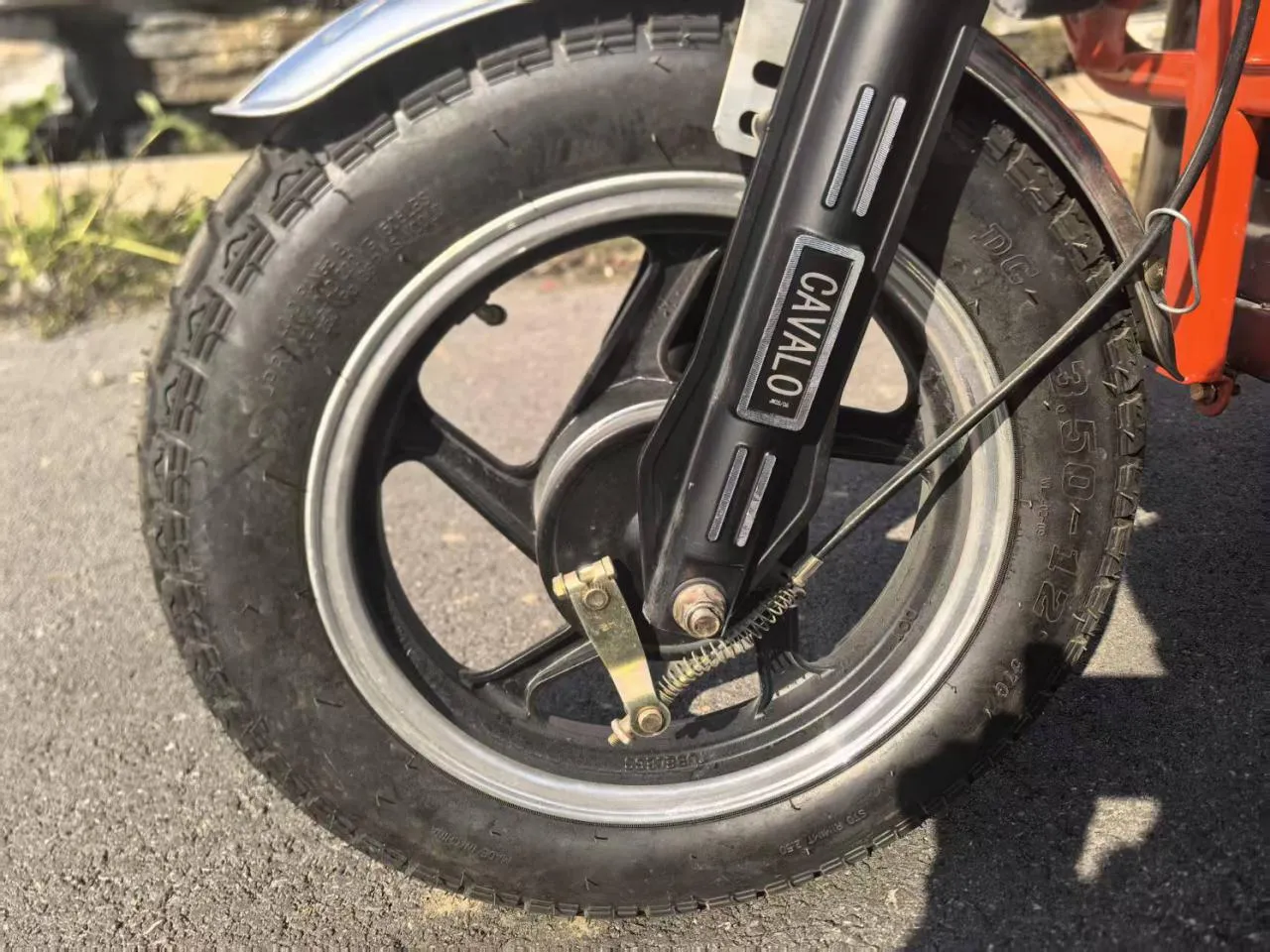

- Brake System：Apply three brakes with one foot, braking both the front and rear wheels simultaneously, reducing skidding and fishtailing, and ensuring more stable braking during driving.
- The front of the carriage is equippedwith side doors, which are easy to open and facilitate passengers’ boarding and alighting.
Parameter
| Parameter Information | Information |
| Overall Vehicle Dimensions(L×W×H) | 2665mm*920mm*1212mm |
| Internal Cargo Compartment Dimensions(L×W×H) | 1195mm*850mm*410mm(Outside) 1065mm*770mm*410mm(Inside) |
| Unladen Ground Clearance(mm) | 160mm |
| Rear Wheel Track/Wheelbase | 775mm/1935mm |
| Curb weight(KG) | 160 |
| Motor Power | 1200w |
| Transmission Gears | Low Gear/High Gear |
| Front/Rear TyreDesignation | Front:3.50-12 Rear:3.75-12 |
| Front/Rear shock absorption | – |
| Service Brake System | Foot-Operated Service |
| Brake Type (Disc/Drum) | Front /Rear : Drum |
| Parking Brake | Hand-Operated Parking Brake |
| Power Battery | Choosable |
| Battery Specifications | – |
| Charging time(h) | – |
| Range (City) | – |
| Max speed | 25/45 |
| Speed Mode | Low/Medium/High Speed Mode |
| Rated Payload Capacity(KG) | – |
| Maximum Payload Capacity(KG) | – |
| Maximum Grade ability(°) | – |
| SKD Semi-Skid Frame | pcs/40HQ |
| CKD has been completely dismantled | pcs/40HQ |
| Excluding tax, excluding batteries, excluding delivery charges |
